| Specification |
| Camera |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with white light |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Wide Dynamic Range |
130 dB |
| Angle Adjustment |
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Lens |
| Focal length |
2.8 mm / 4mm |
| Aperture |
F1.0 |
| Focus |
Fixed |
| FOV |
2.8 mm, horizontal FOV 104°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 93°, vertical FOV 46°, diagonal FOV 112° |
| Lens Mount |
M16 |
| Depth of Focus |
2.8 mm: 3.4m to ∞ |
| Illuminator |
| Smart Supplement Light |
Yes |
| Supplement Light |
White |
| White Light Range |
Up to 30 m |
| Compression Standard |
| Main Stream |
50Hz: 20fps (3840 × 2160)
25fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
|
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Audio |
| Audio Type |
Mono sound |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Network |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface ( Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user |
| Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
Client |
iVMS-4200, HiLookVision Web Client, HiLookVision App |
| Web Browser |
Plug-in required live view: IE10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Interface |
| Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB (SD Card not included) |
| Built-in Microphone |
Yes |
| Reset Key |
Yes |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| General |
| Power Supply |
12 VDC ± 25%, 0.79 A, max. 9.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W |
| Material |
Metal |
| Operating Conditions |
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Protection Level |
Ingression protection: IP67 (IEC 60529-2013) |

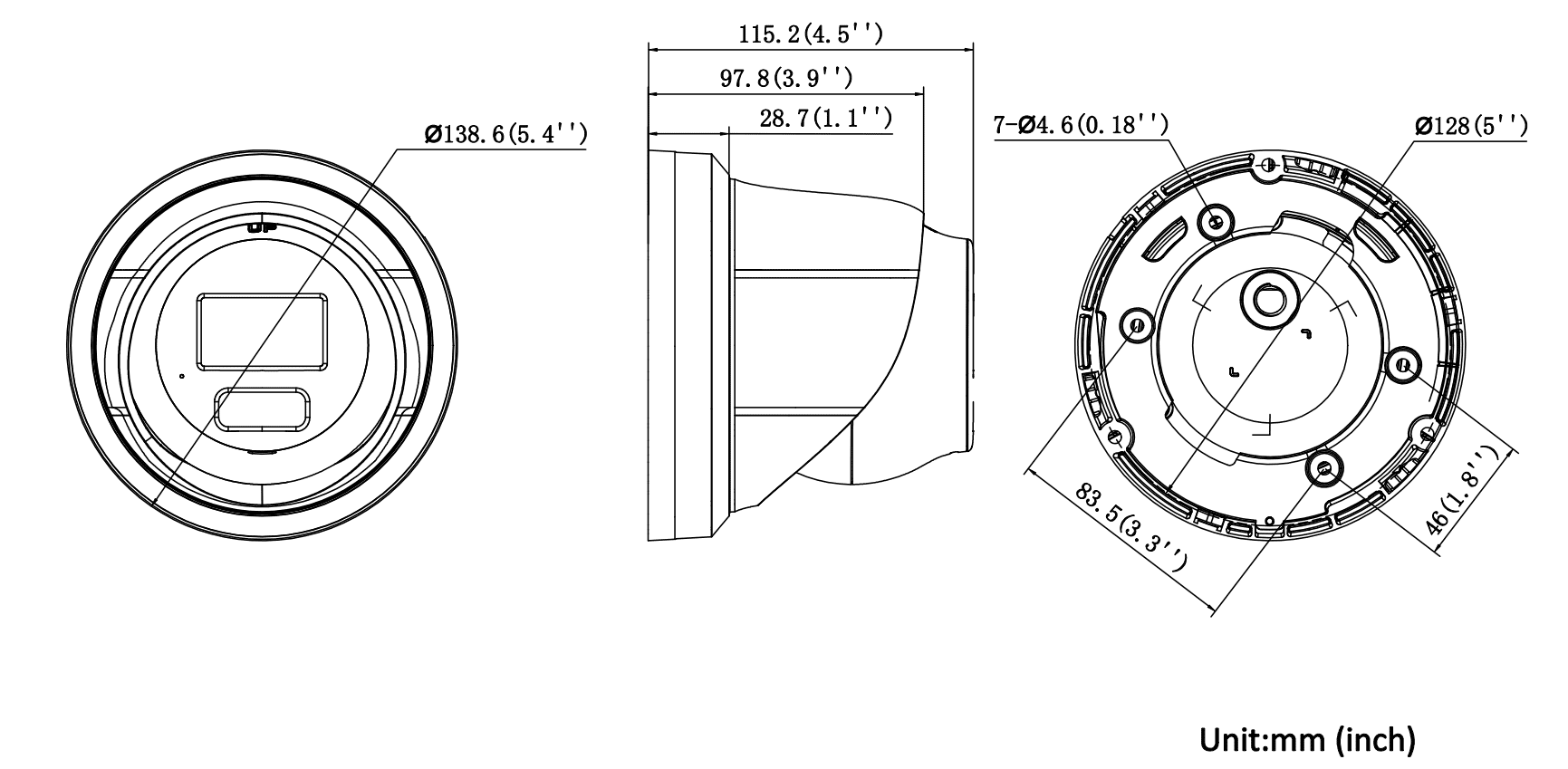

| Dimension |
Ø138.3 mm × 115.4 mm |
| Weight |
Approx. 1040 g (2.3 lb.) |
