| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Time |
1/3s ~ 1/100,000s |
| Slow Shutter |
Support |
| Auto Iris |
No |
| Lens |
2.8 to 12 mm, horizontal field of view: 104° to 29° |
| Angle adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Day & Night |
IR cut filter with auto switch |
| Digital noise reduction |
3D DNR |
| WDR |
120 dB WDR |
| Compression Standard |
| Video compression |
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 |
| Bit rate |
32 Kbps to 16 Mbps |
| Audio compression |
G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Image |
| Max. Image Resolution |
2688 × 1520 |
| Frame rate |
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub Stream |
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240) |
| Third Stream |
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288) |
| Image Enhancement |
BLC/ 3D DNR/ HLC |
| Image settings |
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable
by client software or web browser |
| Target Cropping |
No |
| Day/Night Switch |
Day/Night/Auto/Schedule/Triggered by alarm in |
| Network |
| Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| General Function |
Anti flicker, three streams, heartbeat, mirror, privacy masks, password reset via e mail, pixel counter, HTTP listening |
| System Compatibility |
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Interface |
| Audio |
1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound |
| Communication interface |
1 RJ45 10M / 100M Ethernet interface |
| Alarm |
1 input, 1 output (max. 12 VDC, 30 mA) |
| Video Output |
n/a |
| Reset Button |
Yes |
| On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Audio |
| Environment Noise Filtering |
Support |
| Smart Feature-set |
| Behavior Analysis |
Line crossing detection, intrusion detection, face detection |
| Region of Interest |
Support 1 fixed region for main stream and sub-stream |
| General |
| Operating Conditions |
-30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption |
Max. 12W |
| Weather Proof Ratings |
IP66 |
| Impact Protection |
IK10 |
| IR Range |
up to 30m |

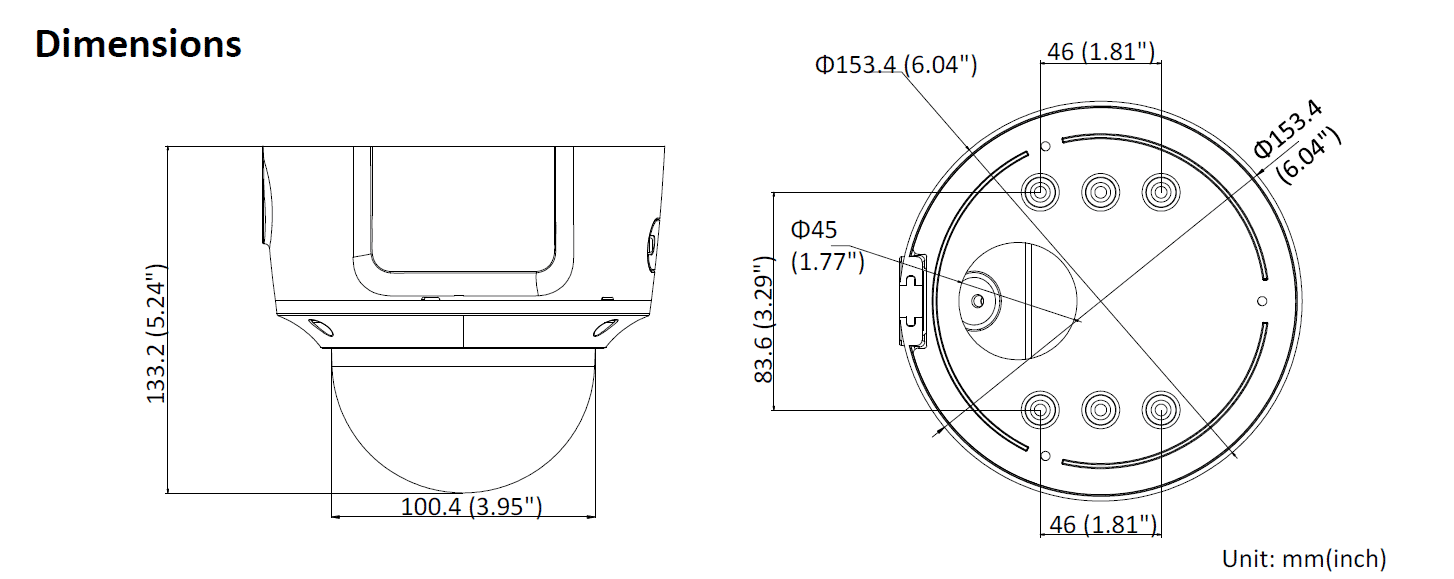

| Dimensions |
Camera: Φ153.4 × 133.2 mm |
| Weight |
Approx. 1330g |
