**Clearance** DS-2CE56D0T-IT3 Hikvision Eco-Range HD-TVI 1080P Turret Camera with 40M EXIR Night Vision (12 Month / 16mm Lens)

Product ID DS-2CE56D0T-IT3
0 reviews | Write a review
Trade Only Item
Trade Only Item
Quantity
-
+
1 Year Warranty
HD-TVI CCTV

Free Shipping

  • Summary
  • Full Spec
  • Diagram

Description

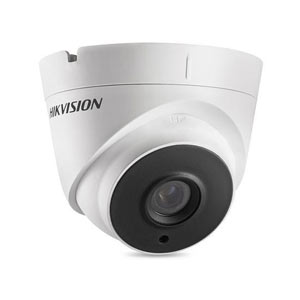

The DS-2CE56D0T-IT3 is a low cost 1080P HD-TVI Turret camera from Hikvision, ideal for home or small business CCTV installations.

The camera is IP66 rated so can be installed indoors or outdoors, it is small and compact and has a stylish design suitable for most modern buildings.

It offers great value for money with excellent 1080P HD image resolution and with its EX IR - it boasts night vision range up to 40 metres!

The DS-2CE56D0T-IT3 is avilable with several different lens options (you select this from the drop down options):

  • 3.6mm - 82.2° angle of view - SOLD OUT
  • 8mm - 37.7° angle of view - SOLD OUT
  • 12mm - 24.2° angle of view - SOLD OUT
  • 16mm - 18.8° angle of view

All in all, one of the best value HD cameras currently available.

Key Features

  • 1080P HD-TVI Camera
  • True Day/Night, Smart IR
  • EXIR technology, up to 40m IR distance
  • IP66 weatherproof

Download

Manufacturers Spec Sheet (PDF)

Compatibility

We strongly advise using with Hikvision HD-TVI recorders only.

Lens Options

Please make sure you select 1080P HD resolution when viewing above footage.

The above footage demonstrates how the lens size will change the angle of view - and give you a better idea which lens to choose.

As you can see the smaller the lens the wider the angle of view - so you can see much more of the scene with the 3.6mm lens, but of course if you are focusing on subjects further away - then the bigger lenses are better options.

Please note the camera was located in exactly the same spot for all this footage - that is approx 3m high and 4m from the first car.

Camera
Image Sensor 2MP CMOS Image Sensor
Effective Pixels 1920(H) x 1080(V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 3.6mm - Angle of View: 82.2°
(Optional: 8mm - 37.7° / 12mm - 24.2° / 16mm - 18.8°)
Lens Mount M12
Day & Night ICR
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate PAL: 1080p@25fps
HD Video Output 1 Analog HD output
S/N Ratio Over 62dB
General
Operating Conditions -20 °C - 45 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4W
Weather Proof Ratings IP66
IR Range up to 40m

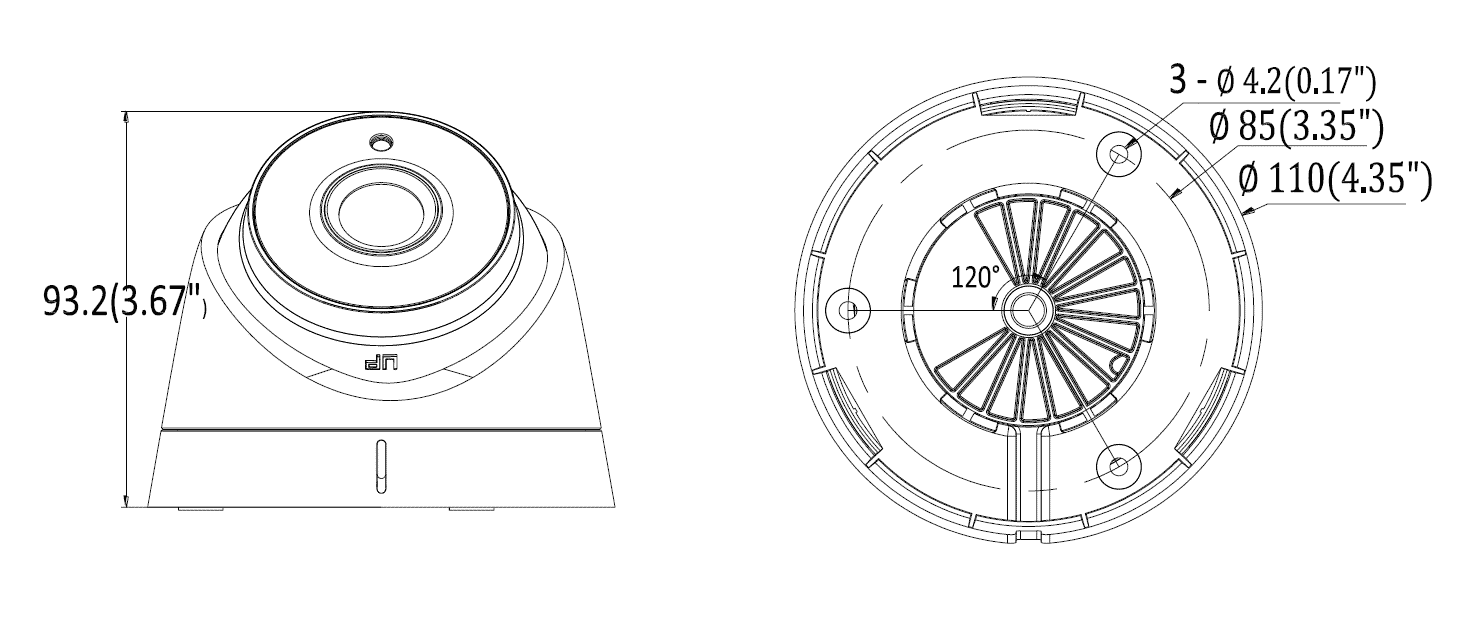

Dimensions Φ110 × 93.2 mm
Weight Approx. 350g
