DS-7204HUHI-K1-P Hikvision 4 Channel 5MP / 1080P HD-TVI Hybrid DVR with Power over Coax (Turbo4.0 / PoC)

Product ID DS-7204HUHI-K1-P

0 reviews | Write a review

Trade Only Item

DS-7204HUHI-K1-P Hikvision 4 Channel 5MP / 1080P HD-TVI Hybrid DVR with Power over Coax (Turbo4.0 / PoC)

DS-7204HUHI-K1-P Hikvision 4 Channel 5MP / 1080P HD-TVI Hybrid DVR with Power over Coax (Turbo4.0 / PoC) #1

DS-7204HUHI-K1-P Hikvision 4 Channel 5MP / 1080P HD-TVI Hybrid DVR with Power over Coax (Turbo4.0 / PoC) #2

DS-7204HUHI-K1-P Hikvision 4 Channel 5MP / 1080P HD-TVI Hybrid DVR with Power over Coax (Turbo4.0 / PoC) #3

Up Grade HDD

Recording times (in Days) with 2000GB HDD

Cameras Connected	2MP (1080P HD) resolution		5MP resolution		8MP resolution
Frame rate (per channel)	15fps	25fps	15fps	25fps	15fps	25fps
2 cameras	73	44	32	19	19	11
4 cameras	36	22	16	9	9	5
8 cameras	18	11	8	4	4	2
16 cameras	9	5	4	2	2	1

The above is based on a 2000Gb HDD in H.265, other hard drives will record for different periods of time for example a 4000Gb would record for double the above times and a 1000Gb would record for half the above times.

Recording times are only a guide and will vary dependent on the actually scene being recorded.

Trade Only Item

Quantity

Free Shipping

Summary
Full Spec

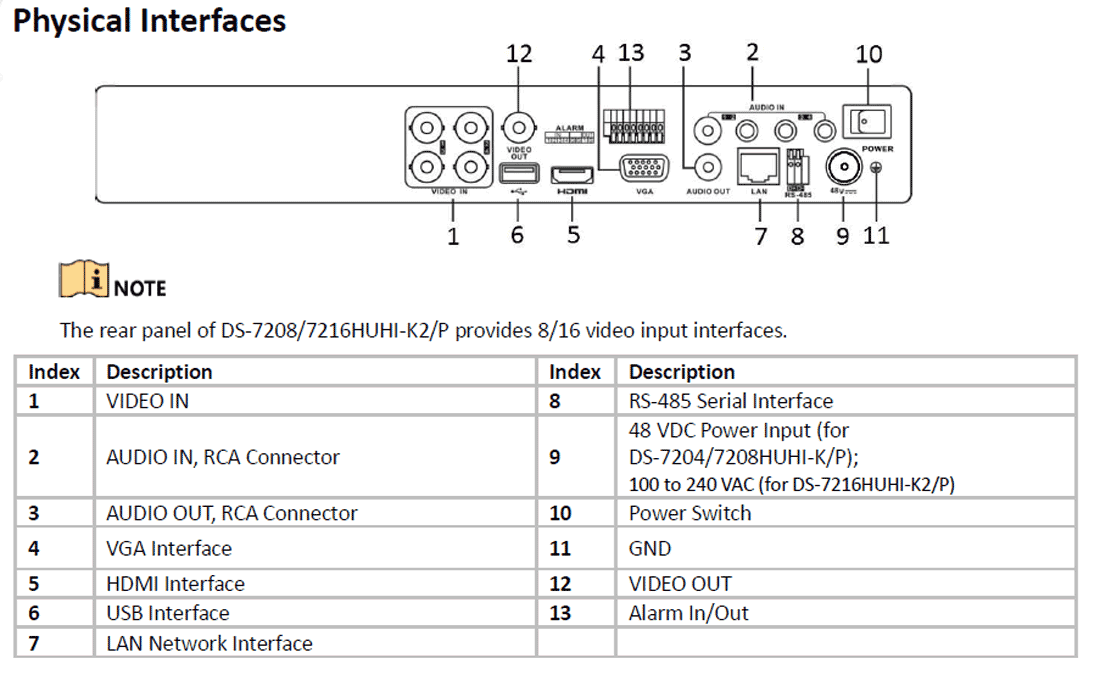

Diagram

Key Features

Self-adaptive normal camera and Hikvision PoC camera connection
H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HD-TVI / HD-CVI / AHD / CVBS signal input
Connectable to 2 x H.265+/H.265/H.264+/H.264 IP cameras
Up to 5 MP resolution for recording
Automatic power supply management for PoC camera to guarantee safety
HDMI and VGA output at up to 1920x1080P resolution
Long transmission distance over coax cable
Support up to 4-ch synchronous playback at 1080P resolution
Internet & Smart Phone compatible

Download

Manufacturers Spec Sheet (PDF)

Video / Audio Input
Audio Input	4ch
Video compression	H.265+/H.265/H.264+/H.264
Analog and HD-TVI Video Input	4CH; BNC interface (1.0Vp-p, 75 Ω)
Supported Camera Types	Support HDTVI input: 5Mp,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input Supports Hikvision PoC camera Note: Do not unplug or plug the PoC camera if it is powered by the external power supply
Audio compression	G.711u
Audio input	4ch RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
CVBS output	1-ch, BNC(1.0Vp-p,75Ω), resolution:PAL:704x576
HDMI / VGA output	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution	5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate	Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate	32 Kbps - 6 Mbps
Stream type	Video, Video & Audio
Audio output	1-ch, RCA (Linear, 1KΩ)
Audio bit rate	64 Kbps
Dual-stream	Support
Synchronous playback	4ch
Network Management
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk
SATA	1 SATA interface
Capacity	Up to 8 TB capacity for each disk
External Interface
Network interface	1; 10M / 100M self-adaptive Ethernet interface
USB interface	2 x USB 2.0
Serial interface	1; standard RS-485 serial interface, half-duplex
Alarm Input	4
Alarm Output	1
General
Power supply	48v DC
Consumption	Max 40W
Working temperature	-10 °C ~ +55 °C
Working humidity	10% ~ 90%
Dimensions (W x H x D)	315 × 242 × 45 mm
Weight	Approx. 1.5Kg

Product Reviews

Be the first to review this product
