| Video / Audio Input |
| Video compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog and HD-TVI Video Input |
32CH; BNC interface (1.0Vp-p, 75 Ω) |
| Supported Camera Types |
Support HDTVI input:4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1/2/3/4.
Support AHD input:4 MP, 1080p25, 1080p30, 720p25, 720p30
Support HDCVI input: 1080p25, 1080p30, 720p25, 720p30
Support CVBS input:PAL/NTSC |
| IP video input |
8-ch (up to 40-ch) - up to 6MP - Supports H.265+/H.265/H.264+/H.264 IP cameras |
| Audio compression |
G.711u |
| Audio input / Two-way audio in |
4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Video / Audio Output |
| CVBS output |
1-ch, BNC(1.0Vp-p,75Ω), resolution:PAL:704x576 |
| HDMI / VGA output |
VGA / HDMI-1: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI-2: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution |
When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame rate |
Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps
(P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps
(N)
For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video bit rate |
32 Kbps - 6 Mbps |
| Audio output |
1-ch, RCA (Linear, 1KΩ) |
| Audio bit rate |
64 Kbps |
| Dual-stream |
Support |
| Stream type |
Video, Video & Audio |
| Synchronous playback |
16CH |
| Network Management |
| Remote Connections |
128 |
| Network Protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF |
| Hard Disk |
| SATA |
4 SATA interface |
| Capacity |
Up to 10 TB capacity for each disk |
| eSATA |
Support |

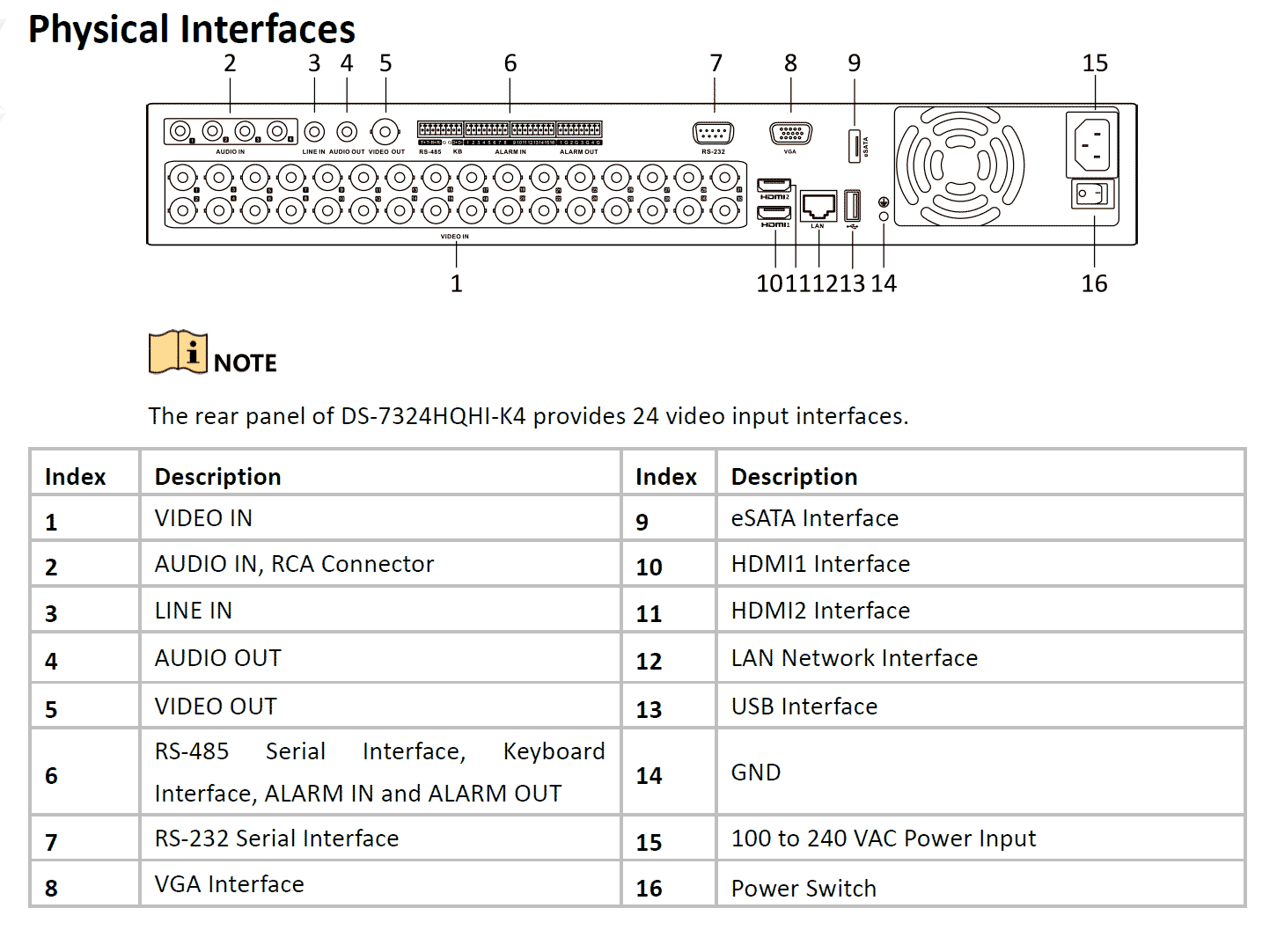

| External Interface |
| Network interface |
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Serial interface |
RS-232, RS-485 (full-duplex), Keyboard |
| USB interface |
Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0 |
| Alarm In/Out |
16/4 |
| General |
| Power supply |
100 to 240 VAC |
| Consumption (without HDD) |
Max 45W |
| Working temperature |
-10 °C ~ +55 °C |
| Working humidity |
10% ~ 90% |
| Dimensions (W x H x D) |
440 x 390 x 70 mm |
| Weight |
Approx. 7Kg |
