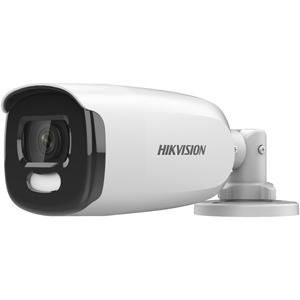

Hikvision DS-2CE12DFT-F28 2MP ColorVu Fixed Bullet Camera

Product ID DS-2CE12DFT-F28
0 reviews | Write a review
Trade Only Item
In Stock 48
Trade Only Item
Quantity
-
+
3 Year Warranty
HD-TVI CCTV

Free Shipping

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 2 MP, 1920 x 1080 resolution
  • 24-hour color image
  • 130dB true WDR, 3DDNR
  • 2.8 mm fixed focal lens, FOV: 104°
  • Smart Light, up to 40 m white light distance
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67

Download

Manufacturers Spec Sheet (PDF)

Camera
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Frame RatePAL: 1080p@25fps
Resolution1920 (H) x 1080 (V)
Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Lens2.8 mm fixed lens
Horizontal Field Of View2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°
Lens MountM16
Day & NightColor
WDR (Wide Dynamic Range)130 dB
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Menu
Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeColor
White BalanceATW/MANUAL
HLCYes
BLC (Backlight Compensation)Yes
FunctionsBrightness, Sharpness, 3D DNR, Mirror, Smart Light
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Power Supply12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Power ConsumptionMax. 4.2 W
Protection LevelIP67
MaterialFront Cover: Metal
Main Body: Plastic
IR RangeUp to 40 m
CommunicationHIKVISION-C

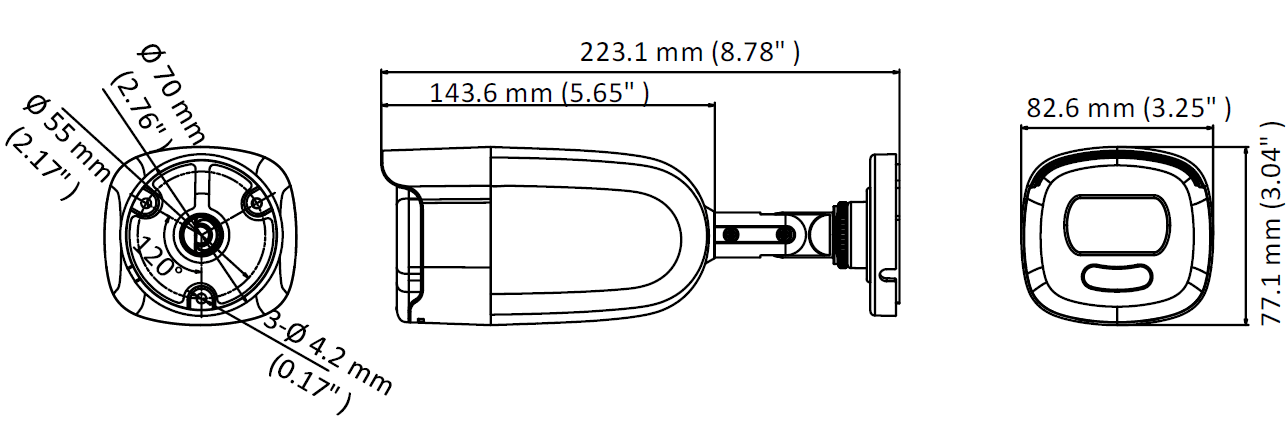

Dimensions223.1 mm × 77.1 mm × 82.6 mm
WeightApprox. 436 g (0.96 lb.)
