| Specification |
|---|
| Camera Module |
|---|
| Image Sensor | 1/1.8" progressive scan CMOS |
| Min. Illumination | Color: 0.002 Lux @(F1.5, AGC ON); B/W: 0.0002 Lux @(F1.5, AGC ON) |
| Shutter Time | 1 to 1/30,000 s |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain | Auto/Manual |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16 × |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB WDR |
| Rapid Focus | Yes |
| Lens |
|---|
| Focal Length | 5.7 to 142.5 mm, 25 × optical zoom |
| Zoom Speed | Approx. 3.7 s (optical lens, wide-tele) |
| Field of View | Horizontal field of view: 59.8° to 2.8° (wide-tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.5 to F3.4 |
| PTZ |
|---|
| Movement Range (Pan) | 360° endless |
| Pan Speed | Configurable, from 0.1°/s to 350°/s. Preset speed: 540°/s |
| Movement Range (Tilt) | From -20° to 90°, auto flip |
| Tilt Speed | Configurable, from 0.1°/s to 240°/s. Preset speed: 400°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| Compression Standard |
| Video compression |
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG |
| Bit rate |
32 Kbps to 16 Mbps |
| Audio compression |
G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| SVC | Yes |
| Smart Features |
|---|
| Face Capture | Detect and capture faces and upload face pictures |
| Perimeter Protection | Intrusion, Line Crossing, Region Entrance, Region Exiting. Support alarm triggering by specified target types (human and vehicle). Reduce mistaken alarm caused by target types such as leaf, light, animal, and flag, etc. |
| Event Detection | Face detection, unattended baggage detection, object removal detection, audio exception detection |
| Smart Tracking | Manual tracking, auto tracking (support tracking specified target types such as human and vehicle), event tracking |
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| Region of Interest | Eight fixed region for each stream |
| IR |
|---|
| IR Distance | n/a |
| Image |
|---|
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
| Network |
|---|
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users; 3 user levels: administrator, operator and user |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Interface |
|---|
| Alarm Interface | 7-ch alarm input/2-ch alarm output |
| Audio Interface | 1-ch audio input, 2.0 to 2.4V p-p, 1k Ohm ± 10%
1-ch audio output , line level, impedance: 600Ω |
| Network Interface | 1 RJ45 10 M/100 M Ethernet interface, Hi-PoE |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Video Out | 1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC connector |
| General |
|---|
| Power | 24 V, 2.5 A, 50/60Hz, AC (max. 60 W, including max.10 W for heater)
Hi-PoE, 42.5-57 V, 0.75 A (max. 50 W, including max.10 W for heater) |
| Working Environment | Temperature: -40°C to 70°C (-40°F to 158°F), humidity: ≤ 95% |
| Protection Level | IP67 Standard, IK10, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | Aluminum alloy |

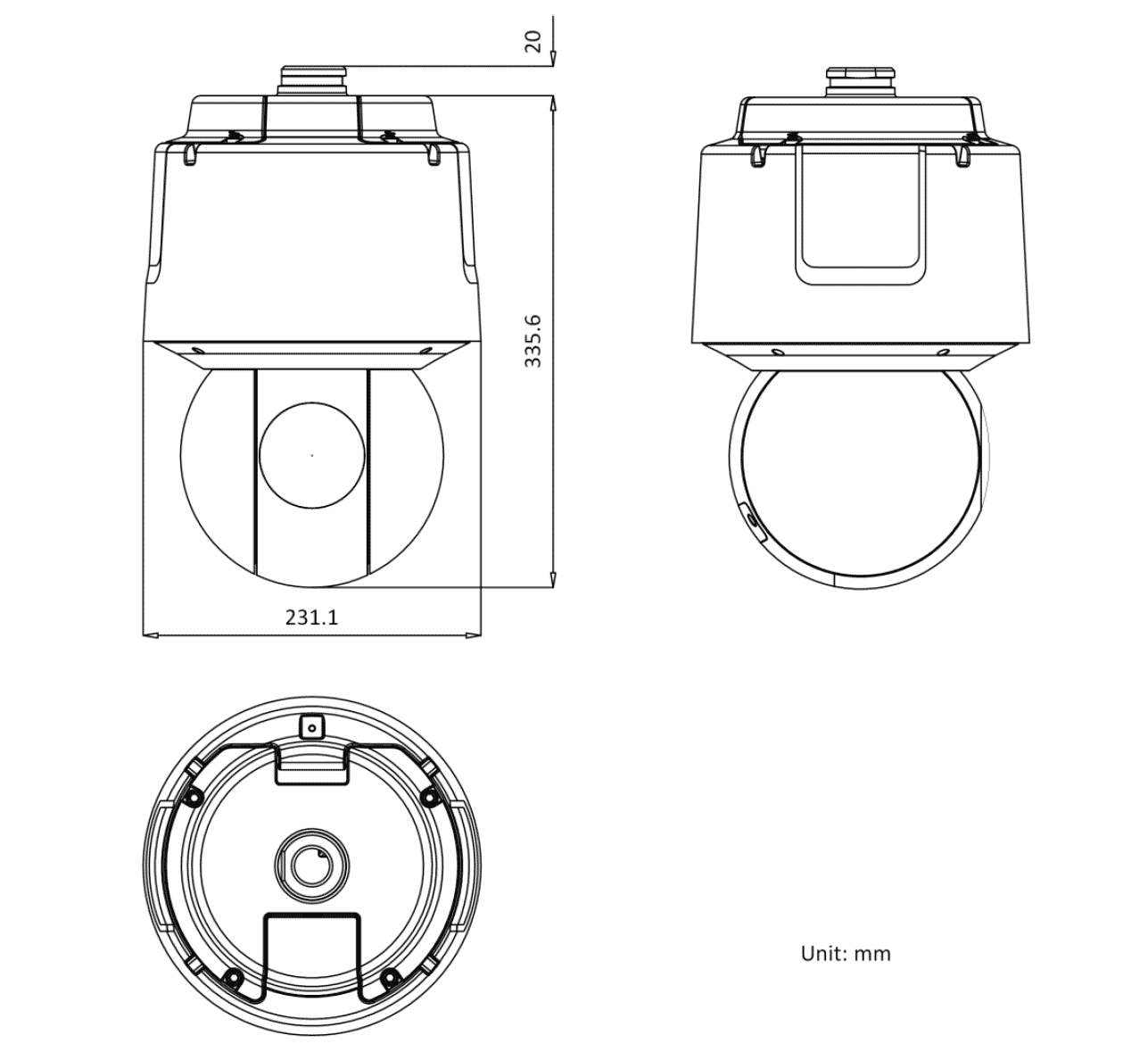

| Dimension | Φ 231.1 mm × 355.6 mm |
| Weight | Approx. 6 kg |
