Camera Features
- 5 Megapixel high-performance CMOS
- 3.6mm fixed lens - FOV 80.1°
- Analog HD output, up to 5MP resolution
- True Day/Night, OSD Menu, 2D DNR
- EXIR technology, up to 20m IR distance
- IP67 weatherproof, IK10
- Up the Coax(HIKVISION-C Protocol)
- PoC.af (Power over Coax)
Camera Spec
Manufacturers Spec Sheet (PDF)
DVR Features
- Self-adaptive normal camera and Hikvision PoC camera connection
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Self-adaptive HD-TVI / HD-CVI / AHD / CVBS signal input
- Connectable to 2 x H.265+/H.265/H.264+/H.264 IP cameras
- Up to 5 MP resolution for recording
- Automatic power supply management for PoC camera to guarantee safety
- HDMI and VGA output at up to 1920x1080P resolution
- Long transmission distance over coax cable
- Support up to 4-ch synchronous playback at 1080P resolution
- Internet & Smart Phone compatible
DVR Spec
Manufacturers Spec Sheet (PDF)

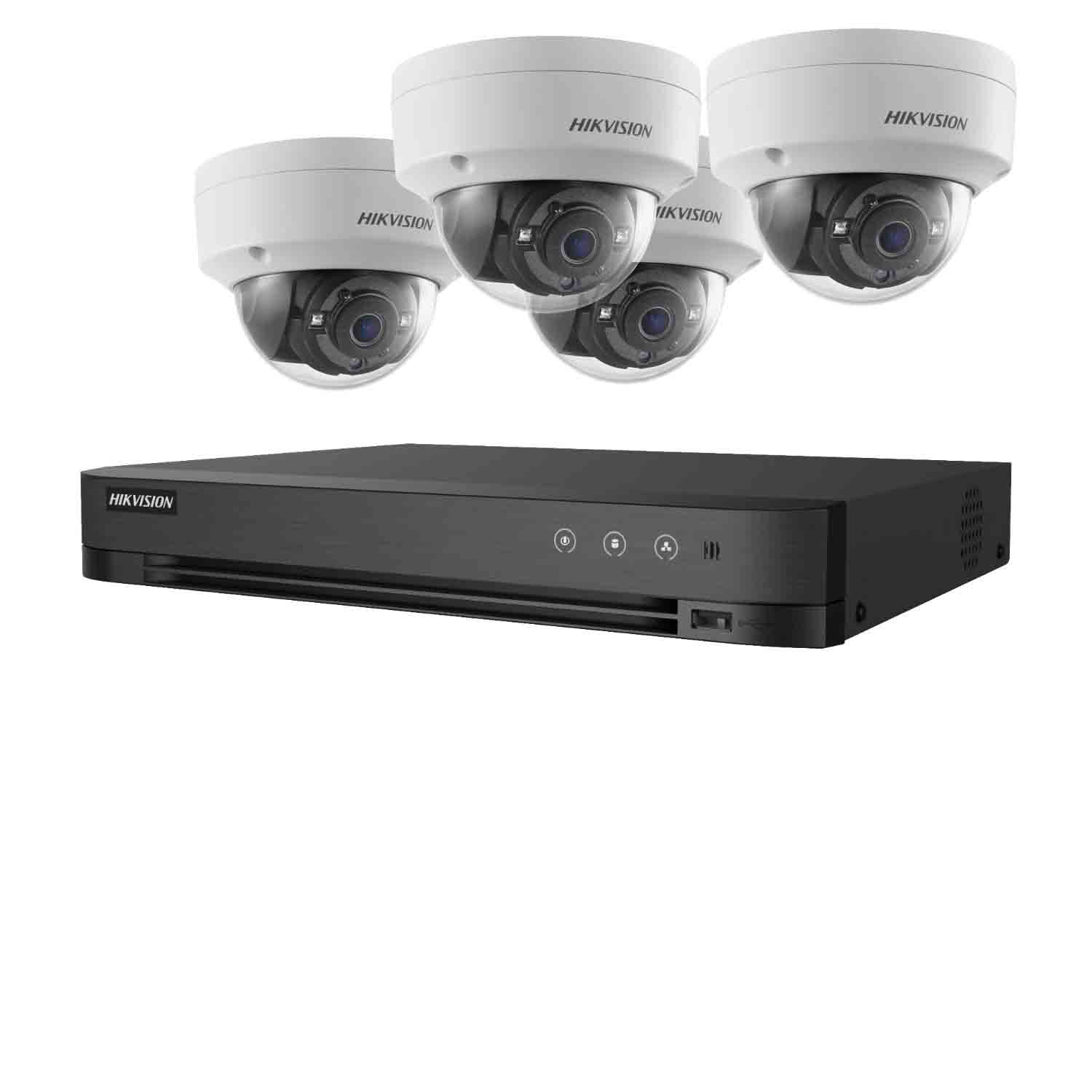

What's included
- 4 x Hikvision 5MP Vandal Dome Camera 3.6mm Lens with 40M EXIR Night Vision (PoC)
- 1 x Hikvision DVR (4 Channel)
- 1 x Optional HDD
Click on below images to see full specifications of cameras & DVR (opens in new page).
