| Camera |
| Image Sensor |
[Bullet channel] 1/1.8" Progressive Scan CMOS,
[PTZ channel] 1/1.8" Progressive Scan CMOS |
| Min. Illumination |
[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with Light,
[PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with IR |
| Shutter Speed |
1 s to 1/30000 s |
| Slow Shutter |
Yes |
| Day & Night |
[Bullet channel] Color,
[PTZ channel] IR cut filter |
| Zoom |
[PTZ channel] 25 x optical, 16 x digital |
| Max. Resolution |
[Bullet channel] 3840 x 1080,
[PTZ channel] 2560 x 1440 |
| Lens |
| Focus |
Auto, semi-auto, manual |
| Focal Length |
[Bullet channel] 2.8 mm,
[PTZ channel] 5.9 to 147.5 mm |
| Zoom Speed |
[Bullet channel] No,
[PTZ channel] approx. 4.8 s |
| FOV |
[Bullet channel] horizontal field of view: 190° ± 5°, vertical field of view: 50° ± 5°, diagonal field of view: 198° ± 5°,
[PTZ channel] horizontal field of view: 58.5° to 3.1°, vertical field of view: 34° to 1.7°, diagonal field of view: 65.8° to 3.5° |
| Aperture |
[Bullet channel] F1.0,
[PTZ channel] F1.5 |
| Illuminator |
| Supplement Light Range |
[Bullet channel] white light: up to 30 m,
[PTZ channel] IR: up to 300 m |
| Smart Supplement Light |
Yes |
| PTZ |
| Pan Range |
[PTZ channel] 0° to 360° |
| Pan Speed |
[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s |
| Tilt Range |
[Bullet channel] 7° to 17°,
[PTZ channel] -20° to 90° |
| Tilt Speed |
[Bullet channel] tilt speed configurable,
[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Pan |
[Bullet channel] No,
[PTZ channel] Yes |
| Number of Preset |
300 |
| Patrol |
8 patrols, up to 32 presets per patrol |
| Pattern Scan |
4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory |
Yes |
| Park Action |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning |
Yes |
| PTZ Status Display |
Yes |
| Preset Freezing |
Yes |
| Scheduled Task |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video |
| Main Stream |
[Bullet channel] 50 Hz: 25 fps (3840 × 1080), 60 Hz: 24 fps (3840 × 1080),
[PTZ channel]
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream |
[Bullet channel] 50 Hz: 25 fps (1920 × 536), 60 Hz: 24 fps (1920 × 536),
[PTZ channel]
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288),
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream |
[Bullet channel] No,
[PTZ channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline profile, Main profile, High profile |
| H.265 Type |
Main profile |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
8 fixed regions for each stream |
| Audio |
| Audio Compression |
G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio Bit Rate |
32 to 192 Kbps (MP2L2), 16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Environment Noise Filtering |
Yes |
| Network |
| Ethernet |
1 RJ45 100M self-adaptive Ethernet port |
| On-board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Alarm |
7 input(s), 2 output(s) |
| Audio |
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| RS-485 |
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset |
Yes |
| Event |
| Basic Event |
[PTZ channel] video tampering alarm
[PTZ channel & bullet channel] alarm input and output, exception |
| Smart Event |
[PTZ channel & bullet channel] audio exception detection
[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Auto Tracking |
[PTZ channel] yes |
| Smart Linkage |
3D positioning |
| Alarm Linkage |
[Bullet channel] no
[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) |
| Deep Learning Function |
| Multi-Target-Type Detection |
[Bullet channel] no
[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle |
| General |
| General Function |
mirror, password protection |
| Power |
36 VDC ± 25%, max. 70 W, including max. 6 W for heater and max. 6 W for supplement light of bullet channel, and max. 6 W for heater and max. 15 W for supplement light of PTZ channel |
| Operating Condition |
-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),
For speaker: -30 °C to 55°C (-22°F to 131°F) |
| Wiper |
Yes |
| Demist |
Yes |
| Material |
ADC12 |

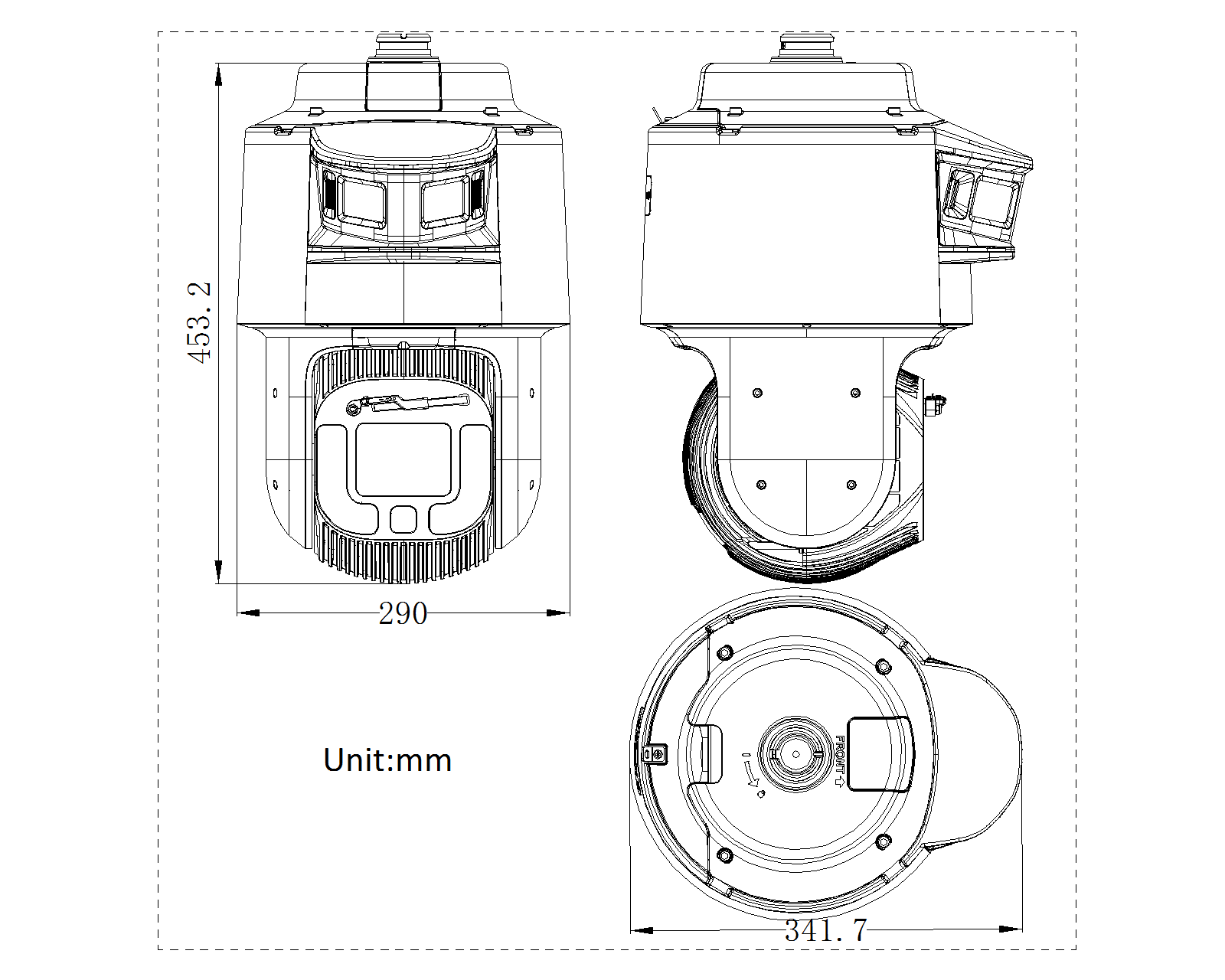

| Dimension |
Ø290 mm × 453.2 mm (Ø11.42" × 17.84") |
| Weight (approx.) |
Approx. 11.5 kg (25.35 lb.) |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Protection |
IP67 (IEC 60529-2013), TVS 6000 V lightning protection, surge protection and voltage transient protection |
