| Camera |
|---|
| Image Sensor | 1/1.2’’ Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Day & Night | 24/7 Color imaging |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens |
|---|
| Lens Type | Fixed focal lens, 2.8mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124° |
| Lens Mount | M mount |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 4 m to ∞
4 mm: 6.2 m to ∞ |
| DORI |
|---|
| DORI | 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m
4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m |
| Illuminator |
|---|
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video |
|---|
| Main Stream | 50 Hz:
25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio |
|---|
| Environment Noise Filtering | -U: Yes |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Network |
|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket,
WebSockets |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
|---|
| Wide Dynamic Range (WDR) | 130 dB |
| SNR | ≥ 52 dB |
| Privacy Mask | 8 programmable polygon privacy masks, mask color or mosaic configurable |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser |
| Interface |
|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256GB |
| Built-in Microphone | Yes |
| Built-in Speaker | 1.5 W, 10 cm: 95 dB |
| Audio | 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface
type: non-equilibrium
1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω,
interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC, 1 A) |
| Reset Key | Yes |
| Event |
|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception (network disconnected, IP address conflict,
illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting
detection (support alarm triggering by specified target types (human and vehicle)),
scene change detection |
| Linkage | Upload to NAS/memory card/
capture, send email |
| Deep Learning Function |
|---|
| Face Capture | Yes |
| General |
|---|
| Power | 12 VDC ± 25%, 0.63 A, max. 8.5 W, Ø 5.5 mm coaxial power plug, reverse polarity
protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.24 A to 0.15 A |
| Material | Cover: metal, main body: metal |

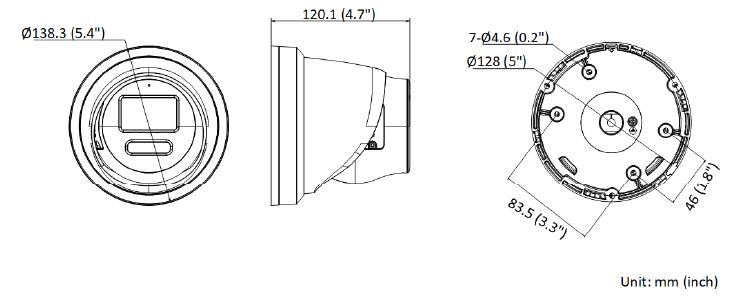

| Dimension | Ø 138.3 mm × 120.1 mm (Ø 5.4" × 4.7") |
| Package Dimension | 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
| Weight | Approx. 900 g (2.0 lb.) |
| With Package Weight | Approx. 1190 g (2.6 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter |
| Approval |
|---|
| EMC | FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN
50130-4: 2011 + A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1
CB: IEC 62368-1: 2014 + A11
CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
