| Camera |
|---|
| Image Sensor | 2 × 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 5120 × 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100, 000 s |
| Angle Adjustment | Pan: -30° to 30°, tilt: -75° to 75° |
| Lens |
|---|
| Lens Type | Fixed focal lens, Dual lens: 4 mm |
| Focal Length & FOV | Horizontal FOV: 180° ± 10°
Vertical FOV: 44° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 3.6 m to ∞ |
| DORI |
|---|
| DORI | 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m |
| Illuminator |
|---|
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video |
|---|
| Main Stream | When WDR is On:
50 Hz: 12.5 fps (5120 × 1440)
60 Hz: 15 fps (5120 × 1440)
When WDR is Off:
50 Hz: 20 fps (5120 × 1440)
60 Hz: 20 fps (5120 × 1440) |
| Sub-Stream | When WDR is On:
50 Hz: 12.5 fps (1920 × 536, 960 × 272)
60 Hz: 15 fps (1920 × 536, 960 × 272)
When WDR is Off:
50 Hz: 20 fps (1920 × 536, 960 × 272)
60 Hz: 20 fps (1920 × 536, 960 × 272) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region(s) for main stream |
| Audio |
|---|
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network |
|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket,
WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users
3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-MD5), watermark, IP address filter, basic and digest authentication for
HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface,
RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host
authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR,
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11 ,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
|---|
| Image Parameters Switch | Yes |
| Image Settings | saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client
software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 130 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface |
|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB |
| Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7
KΩ, interface type: non-equilibrium,
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC, 1 A) |
| Reset Key | Yes |
| Event |
|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and
vehicle)), alarm input and output, flashing alarm light output, audible alarm output,
exception |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting
detection (support alarm triggered by specified target types (human and vehicle)),
scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, trigger capture, audible warning, white light flashing |
| Deep Learning Function |
|---|
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting (support alarm triggering by
specified target types (human and vehicle)) |
| General |
|---|
| Power | 12 VDC ± 25%, 0.79 A, max. 9.5 W, Ø 5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W |
| Material | Base: metal, cover: metal |

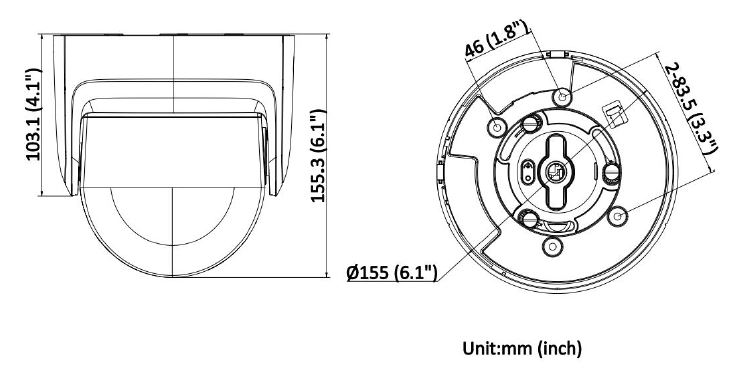

| Dimension | Ø155 mm × 155.3 mm (Ø 6.1" × 6.1") |
| Package Dimension | 230 mm × 230 mm × 230 mm (9" × 9" × 9") |
| Weight | Approx. 1110 g (2.4 lb.) |
| With Package Weight | Approx. 1900 g (4.2 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, password reset via email, password protection, one-key reset |
| Flashing Light | Yes |
| Approval |
|---|
| EMC | FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7 |
| Safety | UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
