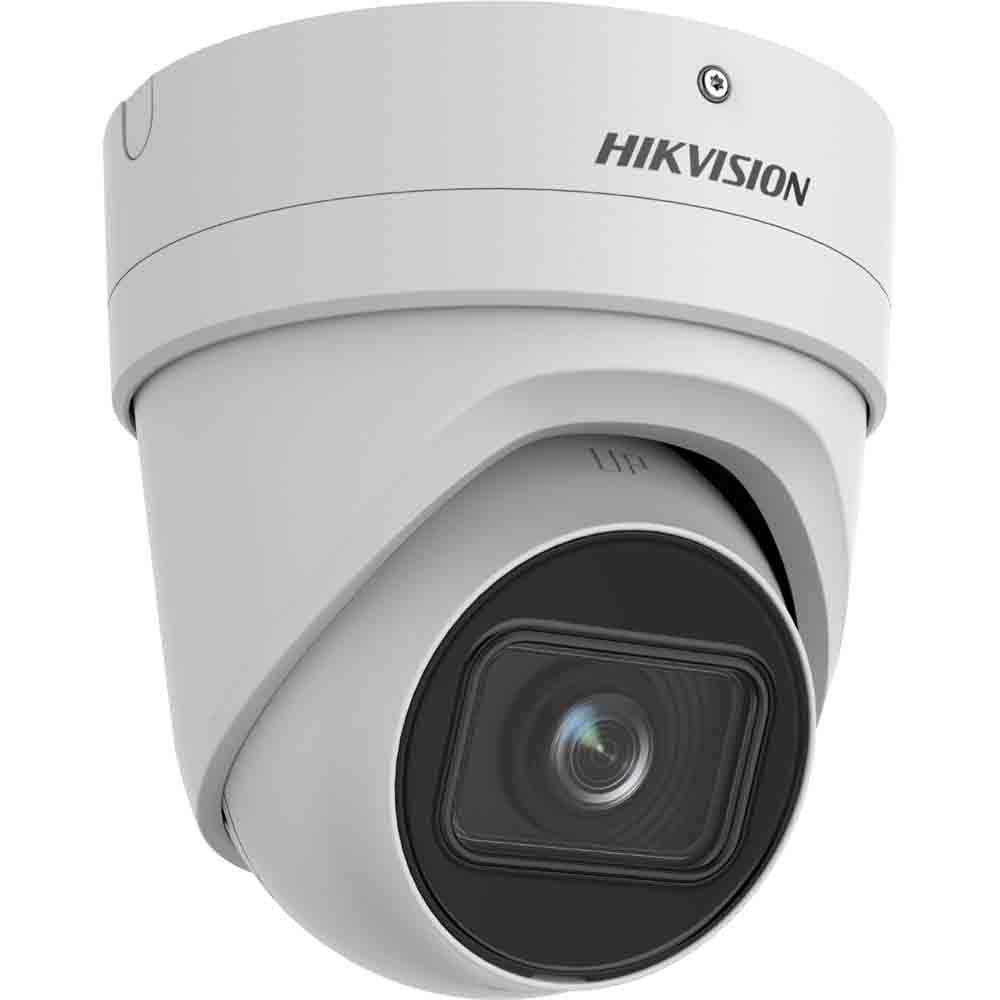

Hikvision DS-2CD2H86G2-IZS 8MP 4K AcuSense Dark Fighter White Turret Network Camera with Motorized Varifocal Lens

Product ID DS-2CD2H86G2-IZS
0 reviews | Write a review
Trade Only Item
Trade Only Item
Quantity
-
+
3 Year Warranty
IP CCTV

Free Shipping

  • Summary
  • Full Spec

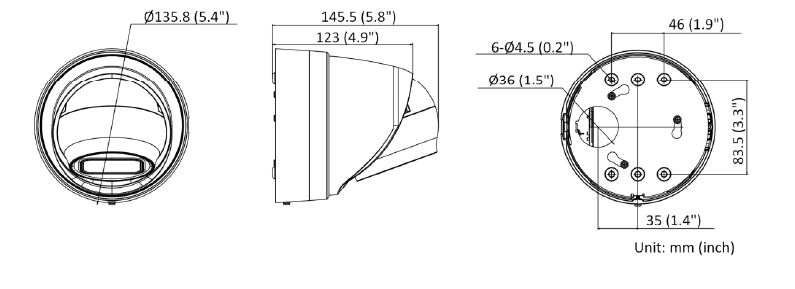

  • Diagram

Summary

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Key Features

  • High quality imaging with 8 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Audio and alarm interface available
  • Water and dust resistant (IP66) and vandal proof (IK1)

Download

Manufacturers Spec Sheet (PDF)

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
Slow ShutterYes
P/NP/N
Wide Dynamic Range120 dB
Power-off MemoryYes
Lens
Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127.4°
to 52°
ApertureF1.4
Lens MountØ 14
Iris TypeFixed
DORI
DORI2.8 to 12 mm:
Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m
Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m
Illuminator
IR RangeUp to 40 m
IR IR Wavelength850 nm
Smart Supplement LightYes
Supplement Light TypeIR
Video
Max. Resolution3840 × 2160
Main Stream50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video CompressionMain stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Audio
Audio TypeMono sound
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket,
WebSockets
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Target CroppingYes
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
SNR≥ 52 dB
Interface
Alarm1 input, 1 output (max. 24 VAC/24 VDC, 500 mA)
Audio1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp,
input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp,
output impedance: 100 Ω, interface type: non-equilibrium
On-Board StorageBuilt-in micro SD slot, up to 256 GB
Reset KeyYes
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm,
exception
Smart EventScene change detection
Deep Learning Function
Face CaptureYes
Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting
detection
Supports human and vehicle targets classification
General
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
Power Consumption and Current12 VDC, 0.92 A, max. 11.04 W
PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W
Power InterfaceTwo-core terminal block
MaterialMetal
DimensionØ 135.8 mm × 145.5 mm (Ø 5.4" × 5.8")
Package Dimension170 mm × 170 mm × 205 mm (6.7" × 6.7" × 8.1")
WeightApprox. 1160 g (2.5 lb.)
With Package WeightApprox. 1530 g (3.4 lb.)
Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger
recording, trigger capture, trigger alarm output, audible warning
General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Software ResetYes
Firmware VersionV5.5.112
Language33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN
32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013)
EnvironmentCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
