| Camera |
|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 140 dB |
| Angle Adjustment | Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens |
|---|
| Focal length | 2.8 to 12 mm |
| Aperture | F1.2 |
| Focus | Auto, semi-auto, manual |
| FOV | horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° |
| Lens Mount | Integrated |
| IR |
|---|
| IR Range | Up to 50 m |
| Wavelength | 850 nm |
| Compression Standard |
|---|
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+
Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | No |
| Audio Bit Rate | No |
| Smart Feature-set |
|---|
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Exception Detection | Scene change detection, defocus detection |
| Statistics | No |
| Face Detection | Yes |
| Recognition | License Plate Recognition |
| Region of Interest | 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking |
| Road Traffic and Vehicle Detection |
|---|
| Accuracy (Under recommended installation and lighting conditions) | Capture rate > 98%
Vehicle moving direction recognition accuracy > 96%
Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint) |
| Blacklist and whitelist | Max. 10,000 records |
| No License Plate Detection | Yes |
| Motorcycle LPR | Yes (only applicable to checkpoint) |
| Image |
|---|
| Max. Resolution | 1920 x1080 |
| Main Stream | 50Hz: 50fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 60fps (1920 x 1080,1280 x 960, 1280 x 720) |
| Sub Stream | 50Hz: 25fps (704 x 576, 640 x 480)
60Hz: 30fps (704 x 480, 640 x 480) |
| Third Stream | 50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480)
60Hz: 30fps (1920 x 1080,1280 x 960, 1280 x 720, 704 x 480, 640 x 480) |
| Fourth Stream | 50Hz: 25fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480)
60Hz: 30fps (1920 x 1080,1280 x 720, 704 x 480, 640 x 480) |
| Fifth Stream | 50Hz: 25fps (704 x 576, 640 x 480)
60Hz: 30fps (704 x 480, 640 x 480) |
| Custom Stream | 50Hz: 25fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480)
60Hz: 30fps (1920 x 1080,1280 x 720, 704 x 480, 640 x 480) |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS, lens distortion correction |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Target Cropping | Yes |
| SVC | H.264 and H.265 encoding |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| Network |
|---|
| Network Storage | microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error, alarm for listed license plate in the blacklist and whitelist |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Security Measures | Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF |
| General Function | One-key reset, anti-flicker, five streams and custom stream, heartbeat, password protection, privacy mask, watermark, IP address filter |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, Hik-Central |
| Web Browser | Plug-in required live view: IE8+, Chrome31.0-44, Mozilla Firefox30.0-51, Safari8.0+
Plug-in free live view: Chrome45+, Mozilla Firefox52+ |
| Interface |
|---|
| Audio | No |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port,
1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Alarm | 2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA) |
| Video Output | 1Vp-p composite output (75 Ω/CVBS) |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| BNC | CVBS analog output (4CIF resolution), internal |
| Reset Button | Yes |
| Audio |
|---|
| Environment Noise Filtering | No |
| Audio Sampling Rate General | No |
| General |
|---|
| Firmware Version | 5.5.60 |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F)
Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 20%, two-core terminal block
PoE (802.3at, class 4) |
| Power Consumption and Current | -IZS: 12 VDC, 1.2 A, max. 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
-IZHS: 12 VDC, 1.4 A, max. 16.5 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A |
| Protection Level | IP67, IK10 |
| Heater | -H: Yes |
| Material | Aluminum alloy |

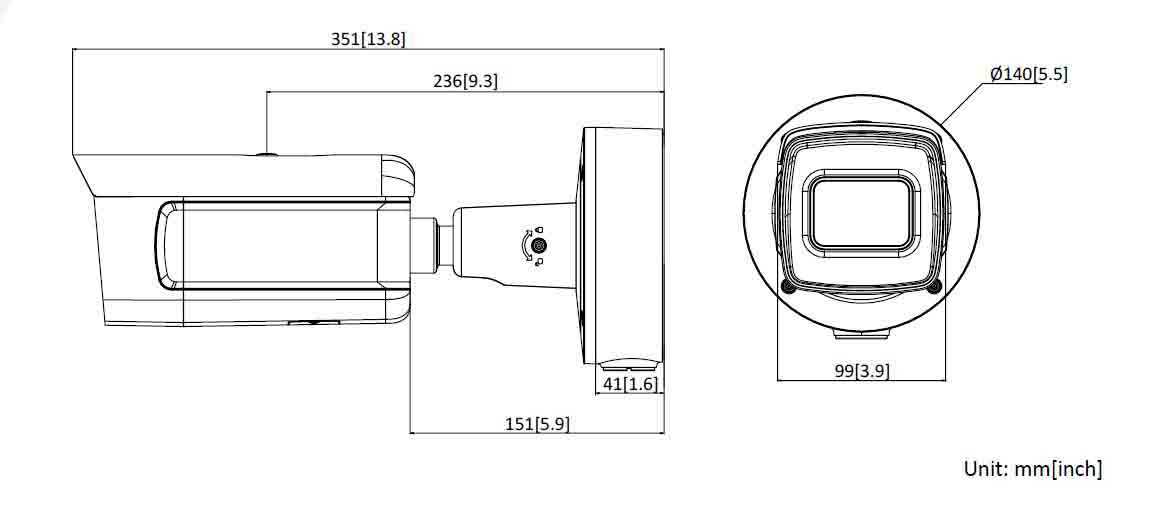

| Dimensions | Camera: Φ140 × 351 mm (Φ5.5" × 13.8")
With package: 405 × 190 × 180 mm (15.9" × 7.5" × 7.1") |
| Weight | Camera: approx. 2.5 kg (5.51 lb.)
With package: approx. 2.75 kg (6.06 lb.) |
