| Camera |
|---|
| Image Sensor | 1/1.8" progressive scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light |
| Shutter Speed | 1/1 to 1/30,000 s |
| Day & Night | 24/7 colorful imaging |
| Zoom | 16x digital |
| Max. Resolution | 2560 × 1440 |
| Lens |
|---|
| Focal Length | 4 mm |
| FOV | Horizontal field of view: 89°
Vertical field of view: 45°
Diagonal field of view: 107.0° |
| Aperture | F1.0 |
| Illuminator |
|---|
| Supplement Light Type | White Light |
| Supplement Light Range | White Light Distance: up to 30 m |
| PTZ |
|---|
| Movement Range (Pan) | 350° |
| Movement Range (Tilt) | 0° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Power-off Memory | Yes |
| Park Action | Preset, patrol scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, patrol scan, dome reboot, dome adjust, aux output |
| Video |
|---|
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio |
|---|
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Environment Noise Filtering | Yes |
| Network |
|---|
| Network Storage | NAS (NFS, SMB/ CIFS) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| API | ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G,
Profile T), ISUP |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Security | Authenticated username and password, MAC address binding, HTTPS encryption,
802.1X authenticated access, IP address filter |
| Web Browser | IE 10+, Chrome 57+, Firefox 52+, Safari 12+ |
| Image |
|---|
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | 120 dB WDR |
| Defog | Digital defog |
| Image Stabilization | EIS |
| Regional Exposure | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by
client software or web browser |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 24 masks (8 masks for each scene) |
| SNR | >52 dB |
| Interface |
|---|
| Built-in Speaker | 1 built-in speaker |
| Power Output | 12 VDC; < 60 mA |
| Ethernet Interface | 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at) |
| On-board Storage | Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB |
| Alarm | 1 input, 1 output |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1
output (line out), line level, output impedance: 600 Ω |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset | Yes |
| Event |
|---|
| Basic Event | Video tampering alarm, motion detection, alarm input, alarm output, exception |
| Smart Event | Line crossing detection, region entrance detection, unattended baggage detection,
object removal detection, intrusion detection, region exiting detection, audio
exception detection |
| Alarm Linkage | Preset, memory card video recording, alarm output, sending email, notify surveillance
center, upload to FTP, audible warning, white light flashing |
| Deep Learning Function |
|---|
| Face Capture | Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting
of face in motion, and outputs the best face picture |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle) |
| General |
|---|
| General Function | Mirror, password protection, watermark, IP address filter |
| Power | 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A
Max. 14 W (including max. 4 W for white light) |
| Operating Condition | Humidity: ≤ 90%, temperature: -30°C to 65°C (-22°F to 149°F) |
| Demist | Yes |

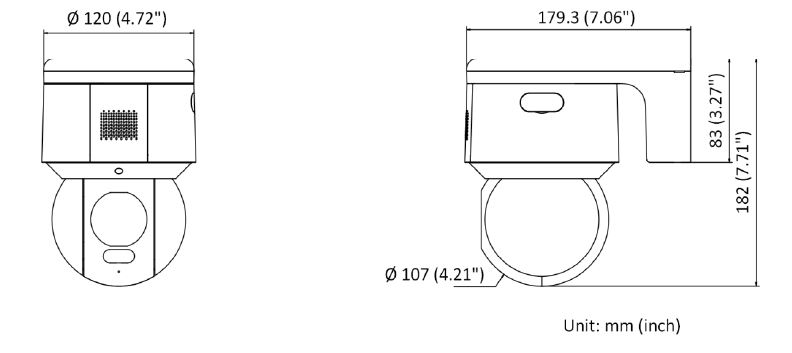

| Dimension | 179.3 mm × 120 mm × 182 mm (7.06" × 4.72" × 7.71") |
| Weight | Approx. 1.125 kg (2.48 lb.) |
| Approval |
|---|
| Protection | IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
