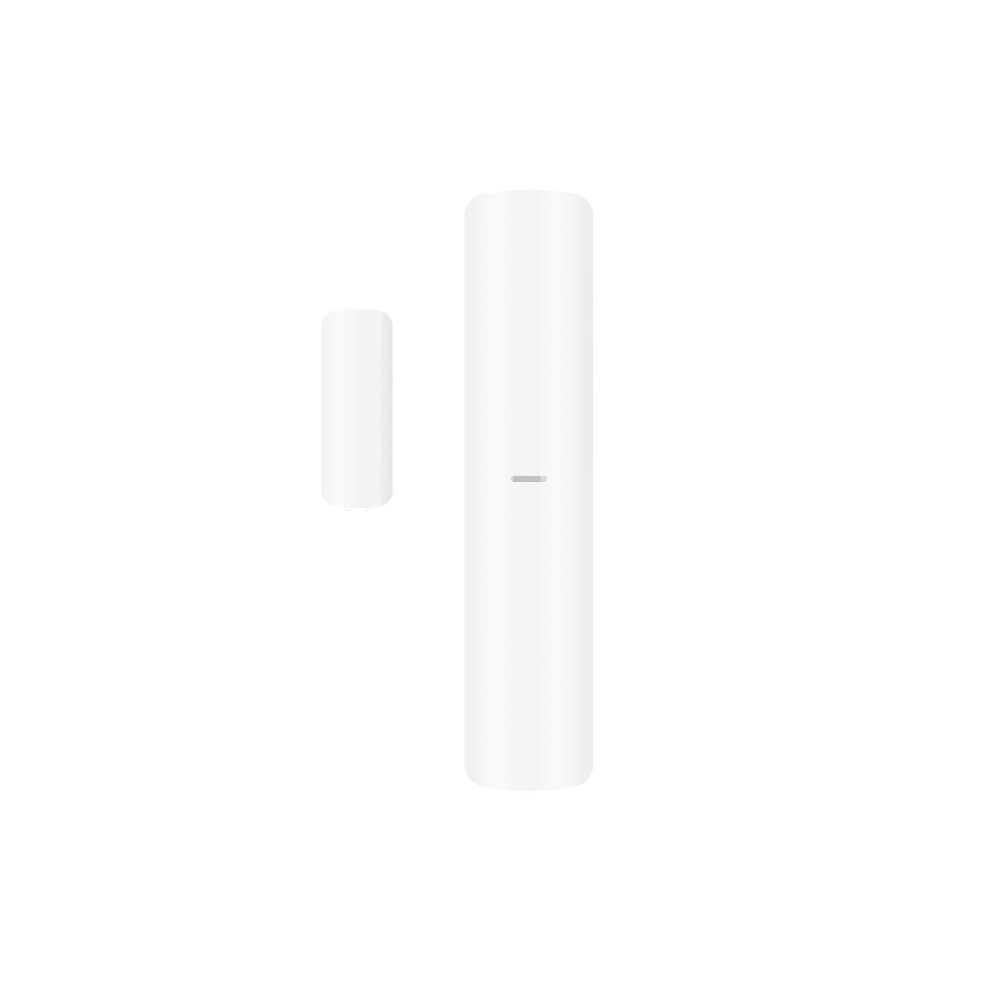

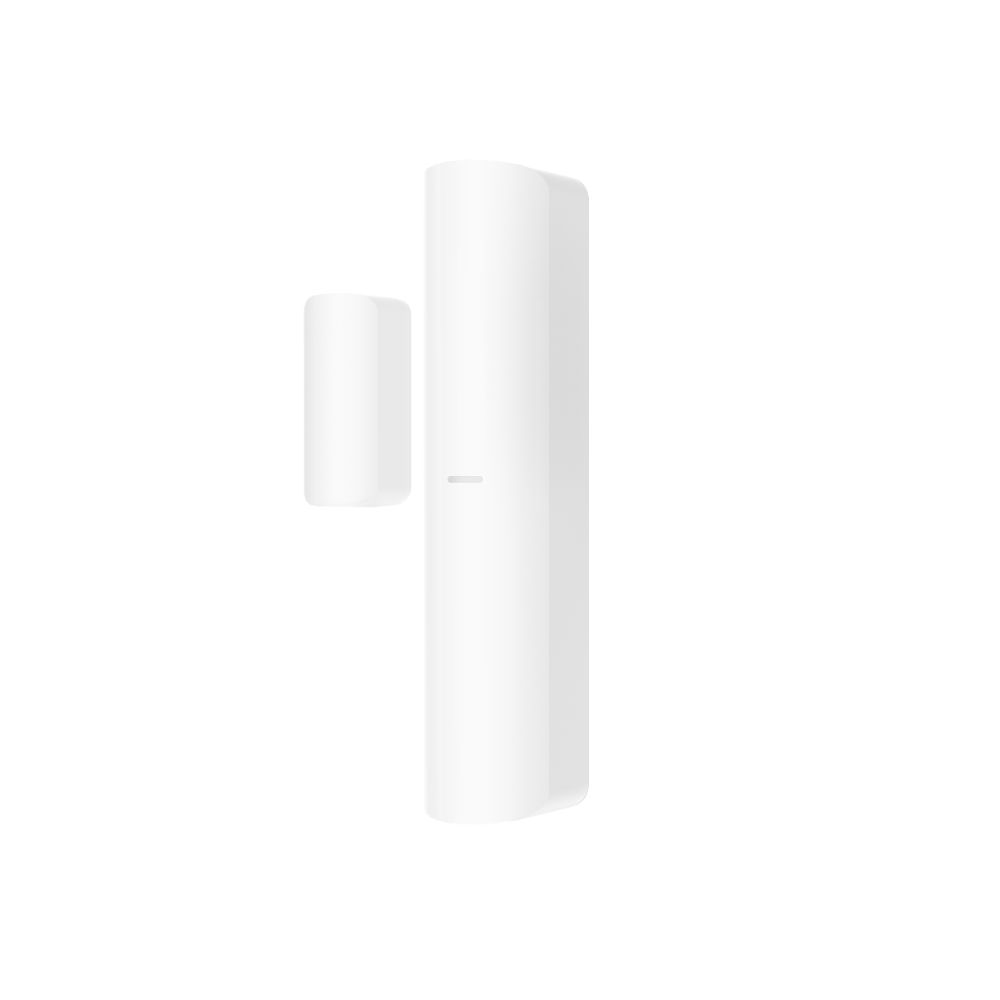

Hikvision AX Pro DS-PDMC-EG2-WE Wireless Magnetic Contact Detector Intruder Alarm

Product ID DS-PDMC-EG2-WE
0 reviews | Write a review
Login For Prices
Hikvision AX Pro DS-PDMC-EG2-WE Wireless Magnetic Contact Detector Intruder Alarm #1Hikvision AX Pro DS-PDMC-EG2-WE Wireless Magnetic Contact Detector Intruder Alarm #2
Login For Prices
Quantity
-
+

Free Shipping

  • Summary
  • Full Spec

Summary

DS-PDMC-EG2-WE is a wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window. It can be mounted on all types of doors including metal base and the onboard inputs will allow user to extend applications by wiring to different wired sensors.

Key Features

  • Slim design for an unobtrusive (unnoticeable) installation
  • Fully remote configurable through App
  • Multiple enrollment methods and easy installation design
  • Frequency hopping against jamming for reliable transmission

Download

Manufacturers Spec Sheet (PDF)

Technical characteristics
Reed switch1
External zones2
Zone optionsNormal and fast sensitivity with pulse count
Programmable pulse countSupported
Fast zone sensitivity1ms
Normal zone sensitivity300ms
Tamper protectionFront and back
LED indicatorAlarm (blue)
Encapsulated PCBSupported
Wireless technical characteristics
Wireless technologyTri-X Wireless Technology
Two-way wireless communicationSupported
Transmission frequency868 MHz
RF range1600m (open space)
Transmission encryptionAES-128 encryption
Enrolling methodsPower up, remote ID and QR code
Frequency hoppingMultichannel transmission
Signal strength indicatorsSupported
Environment temperature indicatorSupported
Electrical and battery
BatteryCR123A x 1 (included)
Standard battery life5 years
Environmental and operating features
Dimension (W × H × D)22.5mm × 103mm × 23.2mm 13mm × 34.4mm × 11.4mm
Weight59g
Storage temperature-20 °C to 60 °C (-4 °F to 140 °F)
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Operating humidity10% to 90%
