| Camera |
|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 2560*1920 |
| Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
| Audio | Built-in mic |
| Lens |
|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127°
4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F2.0 |
| DORI |
|---|
| DORI | 2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m
4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m |
| Illuminator |
|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video |
|---|
| Main Stream | 50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Network |
|---|
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for
HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface,
RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP |
| User/Host | Up to 32 users
3 levels: Administrator, Operator and User |
| Client | iVMS-4200, HiLookVision |
| Web Browser | Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
|---|
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Privacy Mask | 4 regions of privacy mask |
| Interface |
|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event |
|---|
| Basic Event | Motion detection, video tampering alarm, exception |
| Linkage | Notify surveillance center, trigger capture |
| General |
|---|
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| Material | Metal |

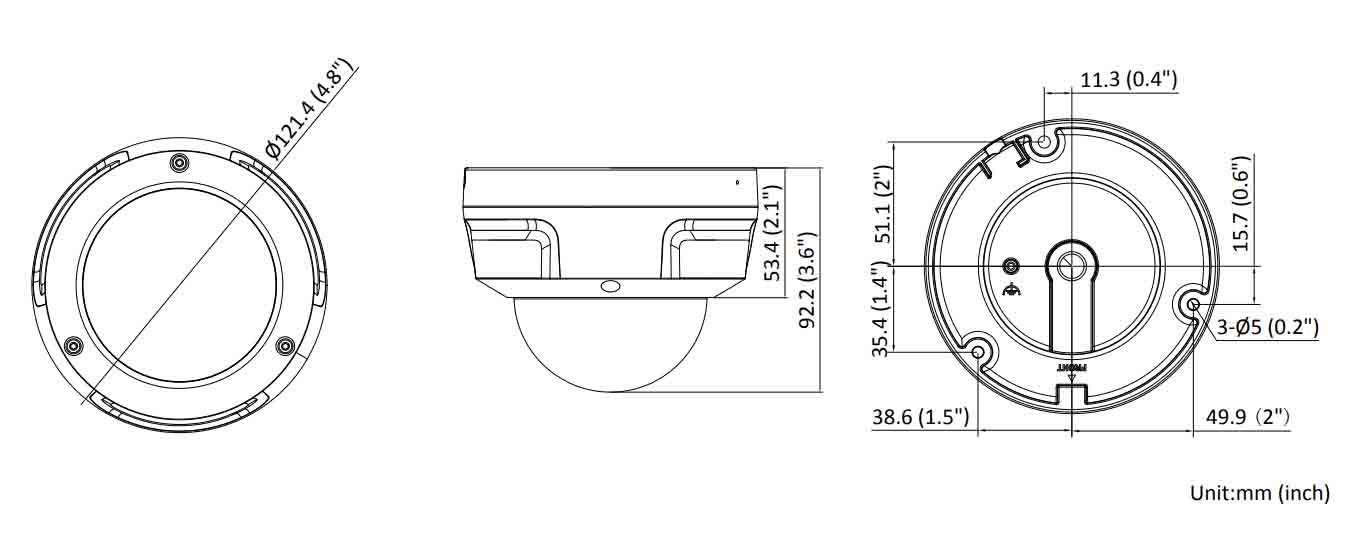

| Dimension | Ø121.4 mm × 92.2 mm (4.8" × 3.6") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 520 g (1.2 lb.) |
| With Package Weight | Approx. 720 g (1.8 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Anti-flicker, heartbeat, password protection, password reset via email |
| Approval |
|---|
| EMC | FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019,
EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015) |
| Safety | CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017) |
| Environment | CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
