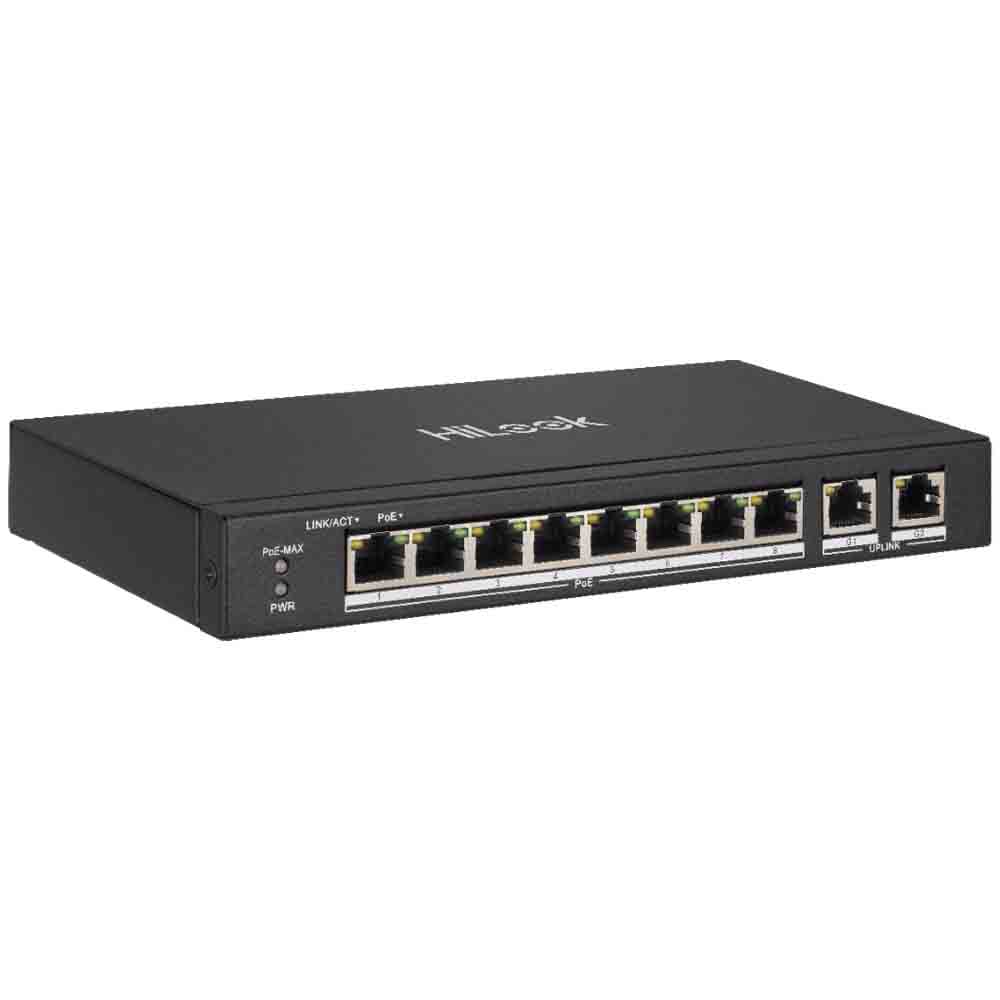

NS-0310P-60 HiLook by Hikvision 8 Port Fast Ethernet Unmanaged POE Switch with 2x Uplinks

Product ID NS-0310P-60
0 reviews | Write a review
£64.80
£64.80
Quantity
-
+

Free Shipping

  • Summary
  • Full Spec
  • Diagram

Summary

NS-0310P-60 switches are layer 2 unmanaged PoE switches, providing advanced PoE power supply technology on the basis of high-performance access to ensure stable data upload. The switches support long range function.

Key Features

  • 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 port.
  • IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
  • 6 KV surge protection for PoE ports.
  • Up to 250 m long-range transmission.
  • Wire-speed forwarding.
  • Store-and-forward switching
  • Solid high-strength metal shell.
  • Reliable fan-free design.

Download

Manufacturers Spec Sheet (PDF)

Specifications
Network parameters
Port number8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports
Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding modeStore-and-forward switching
Working modeStandard mode (default), Extend mode
Ports for long-distance transmissionPorts 1 to 8
MAC address table16 K
Switching capacity5.6 Gbps
Packet forwarding rate4.1664 Mpps
Internal cache4 Mbits
PoE power supply
PoE standardPorts 1 to 8: IEEE 802.3af, IEEE 802.3at
PoE power pinPorts 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
PoE portPorts 1 to 8
Max. port powerPorts 1 to 8: 30 W
PoE power budget60 W
Dialing function
Long rangePorts 1 to 8: up to 250 m.
General
ShellMetal material, fan-free design
Gross weight1.20 kg (2.65 lb)
Net weight0.555 kg (1.22 lb)
Dimension (L × H × D)217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”)
Operating temperature-10°C to 40°C (14°F to 104°F)
Storage temperature-40°C to 85 °C -40°F to 185°F)
Operating humidity5% to 95% (no condensation)
Storage humidity5% to 95% (no condensation)
Power supply48 VDC, 1.35 A
Power consumption in idle< 5 W
Max. power consumption65 W
Power source65 W
Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
