| Video/Audio input |
| IP video input |
8-ch ,Up to 8 MP resolution |
| Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Video/Audio output |
| HDMI output |
HDMI：1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output, |
| VGA output |
VGA：1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output |
| Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
| Recording resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Decoding |
| Synchronous playback |
8-ch |
| Decoding format |
H.265+/H.265/ H.264+/H.264 /MPEG4 |
| Live View / Playback resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Decoding |
1-ch @ 8 MP / 4-ch @ 1080p |
| Hard disk |
| SATA |
1 SATA interface |
| Capacity |
Up to 6TB |

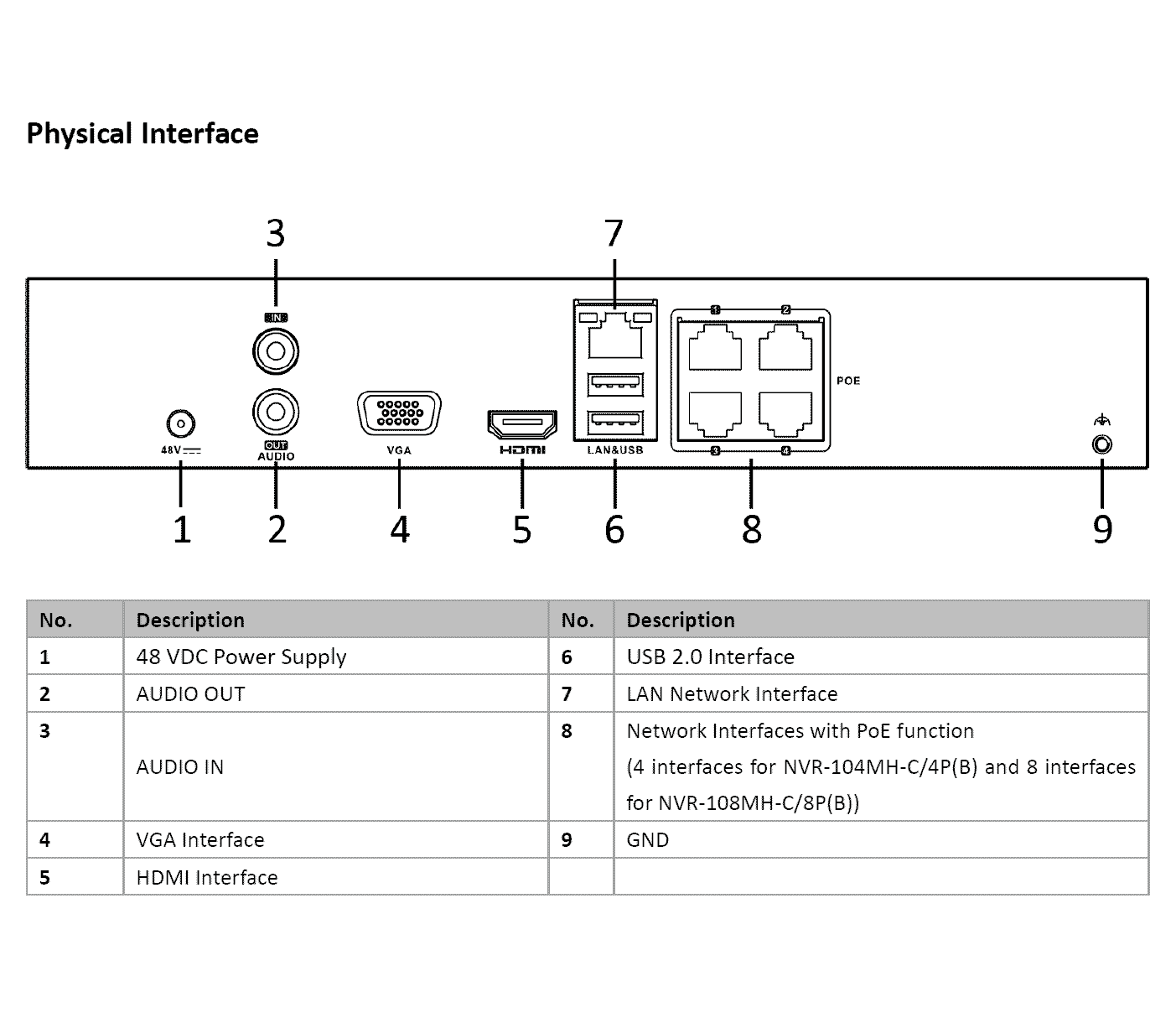

| External interface |
| Network interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
| USB interface |
2, USB2.0 |
| Network management |
| Network protocols |
IPv6, HTTPS, UPnP, NTP, SADP, SMTP, PPPoE, DDNS, iSCSI, NFS |
| Network |
| Incoming bandwidth |
80Mbps |
| Outgoing bandwidth |
80Mbps |
| Remote connection |
64 |
| PoE |
| PoE Interface |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Max. Power |
75W |
| Supported standard |
IEEE 802.3 af/at |
| General |
| Power supply |
48V DC |
| Consumption |
Max 90W (without HDD) |
| Working temperature |
-10 °C ~ +45 °C |
| Working humidity |
10% ~ 90% |

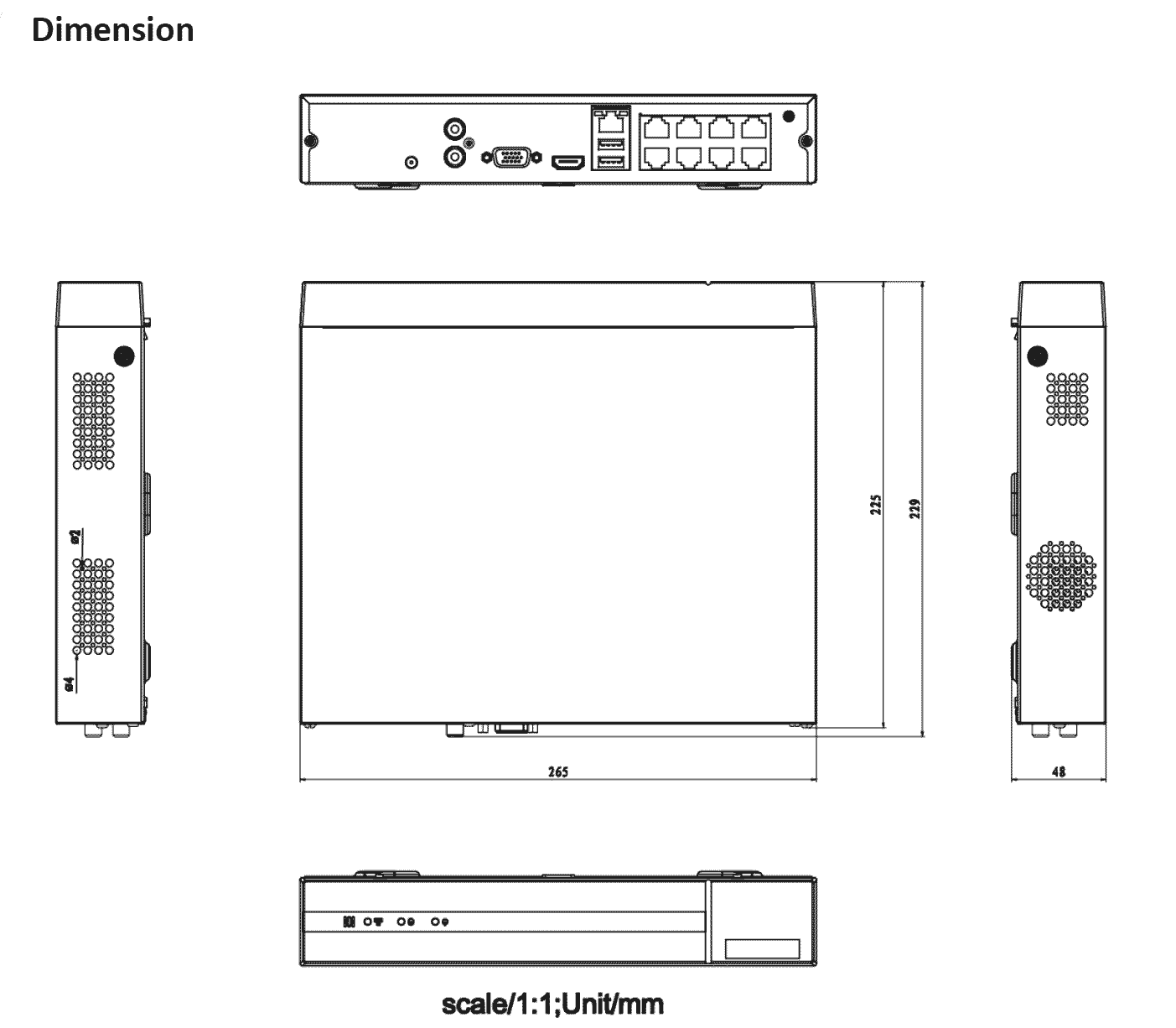

| Dimensions (W x D x H) |
265 × 225 × 48 mm |
| Weight |
Approx. 1Kg (without hdd) |
