THC-B140-M HiWatch by Hikvision HD-TVI 4MP Metal Bullet Camera with 20M IR Night Vision

Product ID THC-B140-M
0 reviews | Write a review
£28.00
£28.00
Quantity
-
+
3 Year Warranty
HD-TVI CCTV

Free Shipping

  • Summary
  • Full Spec
  • Diagram

Description

The THC-B140-M offers 4MP HD resolution at very competitive price, ideal for home or small business security. The camera is nice and discreet, one of the smallest HD Bullet cameras available - it can be installed indoors or outdoors and provides night vision up to a maximum of 20 metres.

The THC-B140-M has a 2.8mm lens which provides an angle of view of 100° - suitable for many applications.

Key Features

  • 4 MP high-performance CMOS
  • 2560 × 1440 resolution
  • 2.8mm fixed lens - FOV 100°
  • Day/Night switch
  • up to 20m EXIR distance
  • Switchable TVI / AHD / CVI / CVBS
  • IP66 weatherproof

Download

Manufacturers Spec Sheet (PDF)

Compatibility

We strongly advise using with HD-TVI recorders.

Camera
Image Sensor 4 MP CMOS image sensor
Effective Pixels 2560 (H) × 1440 (V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 2.8mm - Angle of View: 100.2°
Lens Mount M12
Day & Night ICR
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps, 4 MP@25fps
Menu
AGC High/Medium/Low/Off
D/N Mode Auto/Color/BW (Black and White)
BLC Support
DWDR Support
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
HD Video Output 1 Analog HD output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4W
Protection level IP66
Material Metal
IR Range up to 20m

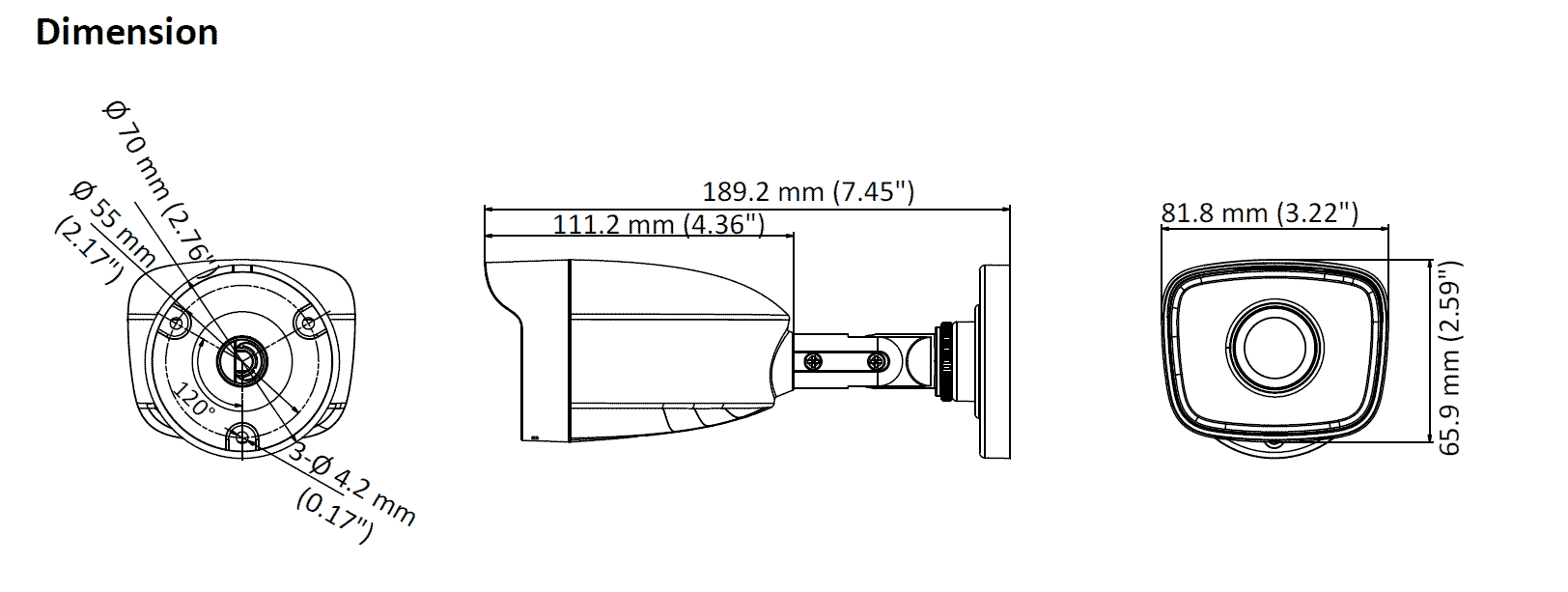

Dimensions 65.9 mm × 189.2 mm × 81.8 mm
Weight Approx. 290g
