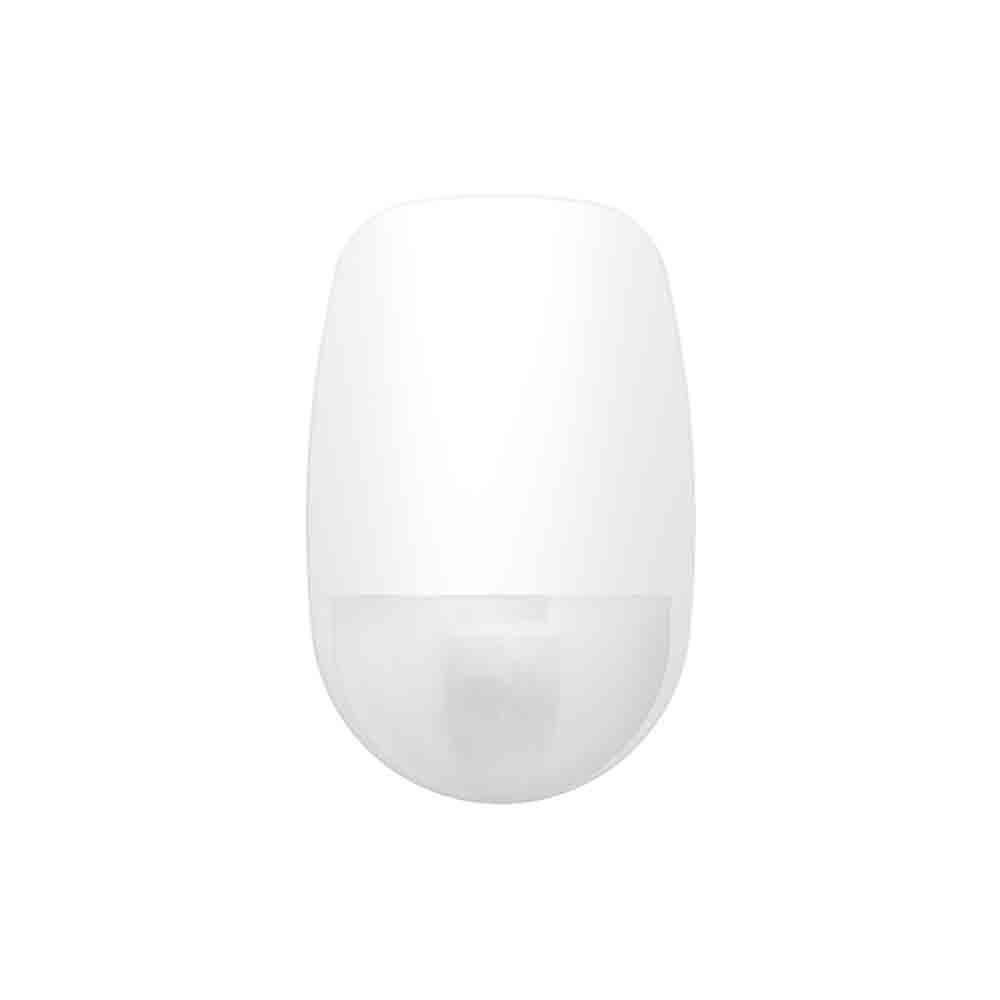

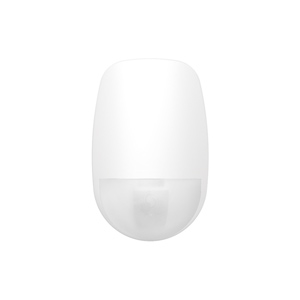

Hikvision AX Pro DS-PDC15-EG2-WE Wireless Curtain PIR Detector Intruder Alarm

Product ID DS-PDC15-EG2-WE
0 reviews | Write a review
Login For Prices
Login For Prices
Quantity
-
+

Free Shipping

  • Summary
  • Full Spec

Summary

DC15-EG2-WE is a two-way wireless detector featuring a solid curtain coverage up to 15m length by 3.6m height, it suitable for perimeter protection by setting up detection "curtain" walls or windows.

Key Features

  • Long range with narrow angle detection
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission

Download

Manufacturers Spec Sheet (PDF)

Detection Performance
Detection MethodPassive Infrared
Detection Range15m
Detection Angle6.3°
Detection Zones18
Detectable Speed0.3~2m/s
Pet ImmunityNone
White Light Filter6500lux
Digital Temperature CompensationSupport
Creep Zone ProtectionSupport
Feature
Digital ProcessingSupport
Sealed OpticsSupport
Tamper ProtectionFront,Rear
Environment Temperature IndicatorSupport
Signal Strength IndicatorSupport
Interface
Power SwitchPower Up Enrolling
LED IndicatorBlue(Alarm)
Transmission
Transmission TechnologyTri-X Wireless
Transmission MethodTwo-Way RF Wireless
Transmission Frequency868MHz
Transmission SecurityAES-128 Encryption
Transmission Range(Free Space)1.6Km
Frequency HoppingSupport
Enrolling MethodPower up,Remote ID,QR Code
Electrical Characteristics
Power SupplyBattery Powered
Battery TypeCR123A × 1
Typical Voltage3V
Standard Battery Life5 Years
General
Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity10% to 90%
Dimension(WxHxD)65.5mm × 103mm × 48.5mm
Weight128g
Mounting Height2.4 to 3.6m
Mounting MethodWall
Application ScenarioIndoor
BracketOptional Wall & Ceiling Accessory
