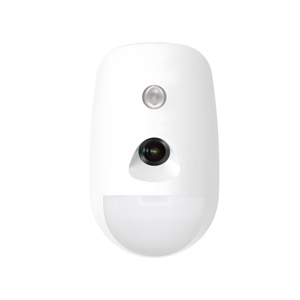

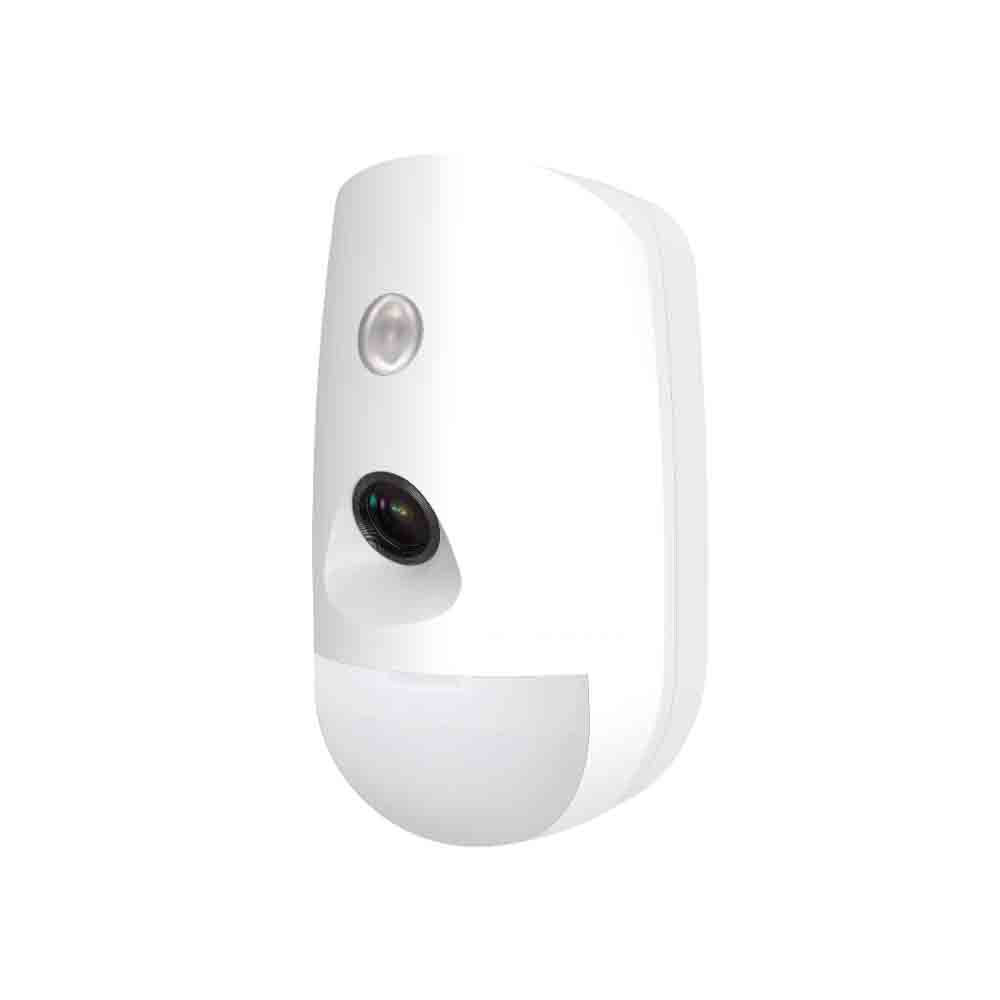

Hikvision AX Pro DS-PDPC12P-EG2-WE Wireless PIR-CAM Detector Intruder Alarm

Product ID DS-PDPC12P-EG2-WE
0 reviews | Write a review
Login For Prices
Hikvision AX Pro DS-PDPC12P-EG2-WE Wireless PIR-CAM Detector Intruder Alarm #1Hikvision AX Pro DS-PDPC12P-EG2-WE Wireless PIR-CAM Detector Intruder Alarm #2
Login For Prices
Quantity
-
+

Free Shipping

  • Summary
  • Full Spec

Summary

PIR-Camera Detector is a fully supervised two-way wireless detector with built-in high quality camera which can provide an ideal solution for video verification via motion pictures transmitted to an ARC or to personal phones via APPs. Protect your premises day and night by viewing real-time images for fast and accurate response to real alarm events.

Key Features

  • Detection range: 12m / 85.9°
  • Up to 30KG pet immunity
  • SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
  • Polarizing IR lens design for more uniform night illumination and excellent night shots
  • Large integrated memory buffer for image storage
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected

Download

Manufacturers Spec Sheet (PDF)

PIR
Detection range12m
Coverage angle85.9°
Detection speed0.3 to 2 m/s
Creep zone protectionSupported
Auto sensitivitySupported
Pet immunityUp to 30Kg
Digital temperature compensationSupported
TechnologyDigital microprocessor based
Sealed opticsSupported
Direct light filter6500lux
Tamper protectionFront and back
LED indicatorAlarm (blue)
Encapsulated PCBSupported
Camera
Lens coverage88°(H), 68°(V)
Sensor typeCMOS
Auto day and nightColor/Black & White
IR LED1 IR LED
IR Range12m
Image typeJPEG
Image size160x120, 320x240, 640x480
Wireless technical characteristics
Wireless technologyCAM-X Wireless Technology
Two-way wireless communicationSupported
Transmission frequency868MHz
RF range800m (open space)
Transmission encryptionAES-128 encryption
Enrolling methodsPower up, remote ID and QR code
Signal strength indicatorsSupported
Environment temperature indicatorSupported
Electrical and battery
BatteryCR123A x 3 (included)
Standard battery life6 years
Environmental and operating features
Dimension (W × H × D)72.2mm × 120.5mm × 56.7mm
Weight210g
Storage temperature-20 °C to 60 °C (-4 °F to 140 °F)
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Operating humidity10% to 90%
Mounting
Installation height1.8 to 2.4m
BracketOptional wall and ceiling accessory
