Description

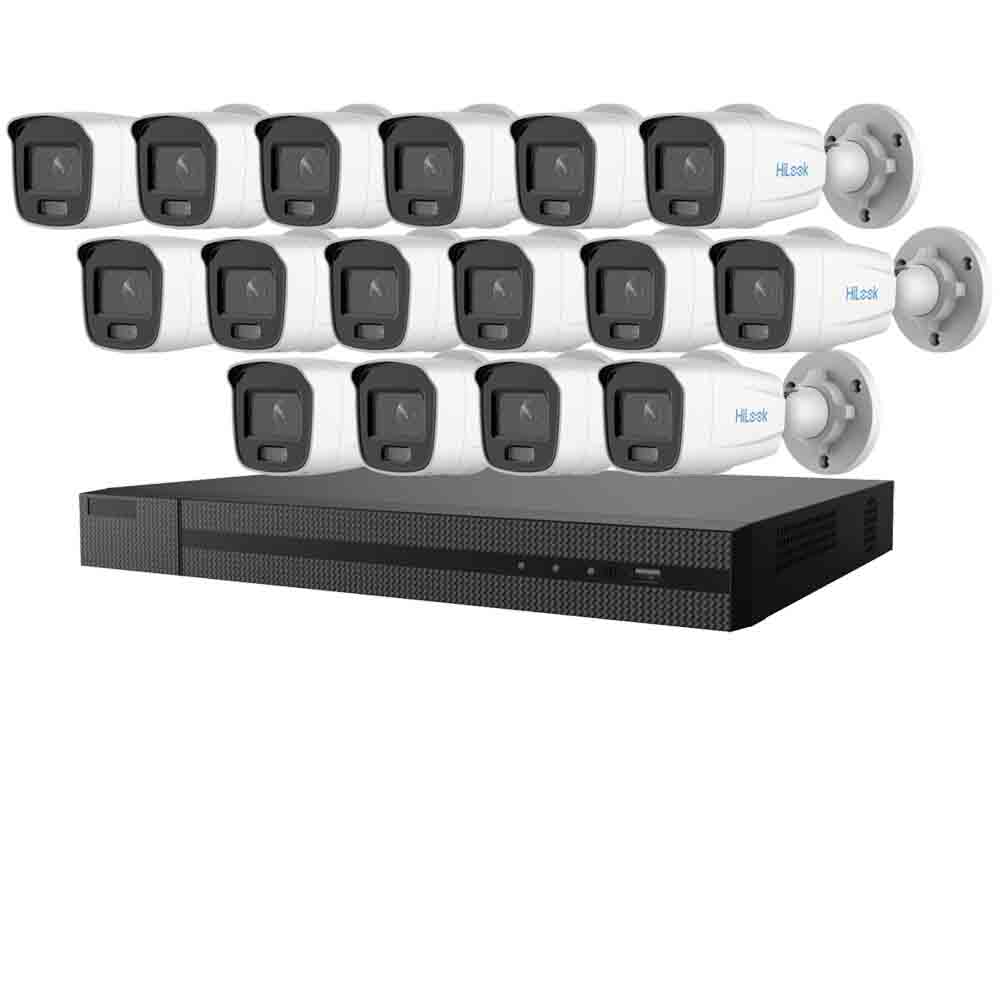

This is a 2.0 Megapixel / 1080P HD ColorVu Lite sixteen camera IP CCTV system by HiLook that provides full colour images both day & night
(it does this by using white light LEDs).
Indoor or Outdoor with Night Vision
The cameras can be installed indoors or outdoors and provide amazing image quality in full colour during both the day and night, when it gets
dark the camera will automatically switch over to night mode and the white light LEDs will switch on - then it can see in full colour even in total darkness up to 30 metre's.
Sleek Modern Design
The cameras are quite small and compact so should not stand out like a sore thumb - bullet cameras should always be installed
well out of reach to prevent vandalism. If you need cameras to be installed low down, take a look at our dome camera systems instead.
Easy Installation
On top of the HD resolution, this is a PoE (Power over Ethernet) System. That means if the cameras are connected
directly to the PoE ports on the rear of the recorder - they do NOT need a power supply, but will be powered directly from the NVR.
This has many benefits, not least it can make installation extremely easy as all you need to do is run 1 Ethernet cable from each
camera to the recorder. Be aware PoE has a maximum working distance of 100 metre's.
The cameras can be mounted on a wall or ceiling and then pointed in the desired direction.
Internet / SmartPhone
All of our HiLook IP systems can be connected to your router and configured so you can remote view them over the internet from a PC /
Mac or even your iPhone / Android.
PC / Mac software usually comes on a CD with the NVR or can always be downloaded from the
HIKVision website here - called iVMS-4200.
For your iPhone or Android phone you can visit your app store and download iVMS-4500, or the new version is called "Hik-connect".
Watching the Footage
Apart from viewing your system over the network or internet, the NVR also has a VGA and HDMI output meaning you could connect
a computer monitor (VGA) and / or HD TV (HDMI) directly to the NVR. If required, using the options above, you can add a HD or VGA Monitor to your
system.
When viewing your footage on one of these monitors you can select multiple views including one camera full screen and a split
view of all cameras at once.
Click on the "Options Help" tab for information about what cables come with the kit and hard drive recording times.
