Specification |
Camera |
Image Sensor |
1/2.8" Progressive Scan CMOS |
Min. Illumination |
Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light |
Shutter Speed |
1/3 s to 1/100,000 s |
Slow Shutter |
Yes |
Wide Dynamic Range |
Digital WDR |
Angle Adjustment |
Pan: 0° to 360°, tlt: 0° to 90°, rotate: 0° to 360° |
Lens |
Focal length |
2.8 mm |
Aperture |
F1.0 |
Focus |
Fixed |
FOV |
2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127° |
Lens Mount |
M12 |
Depth of Focus |
2.8 mm: 1.7 m to ∞ |
Illuminator |
Smart Supplement Light |
Yes |
Supplement Light |
White |
White Light Range |
Up to 30 m |
Compression Standard |
Main Stream |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
Sub Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate |
32 Kbps to 8 Mbps |
H.264 Type |
BaseLine Profile/Main Profile/High Profile |
H.265 Type |
Main Profile |
Region of Interest (ROI) |
1 fixed region for main stream |
Network |
Simultaneous Live View |
Up to 6 channels |
API |
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
Protocols |
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS |
User/Host |
Up to 32 users; 3 levels: Administrator, Operator and User |
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF |
Client |
HiLookVision PC Client, HiLookVision App |
Web Browser |
Plug-in required live view: IE8, IE9, IE10, IE11
Local service: Chrome 57.0+, Firefox 52.0+ |
Image |
Image Enhancement |
BLC/3D DNR/HLC |
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
Day/Night Switch |
Day, Night, Auto, Schedule |
Interface |
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
Intelligent (Traditional Algorithm) |
Basic Event |
Motion detection, exception (illegal login) |
General |
Linkage Method |
Upload to FTP/NAS, notify surveillance center, send email, trigger recording, trigger
capture
*Note: External device is required. |
Web Client Language |
English |
General Function |
Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
Software Reset |
Reset via web browser and client software |
Operating Conditions |
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
Power Supply |
12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection |
Power Consumption |
12 VDC, 0.30 A, max. 3.6 W
PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5 W |
Protection Level |
Ingression protection: IP67 (IEC 60529-2013) |
Material |
Metal |

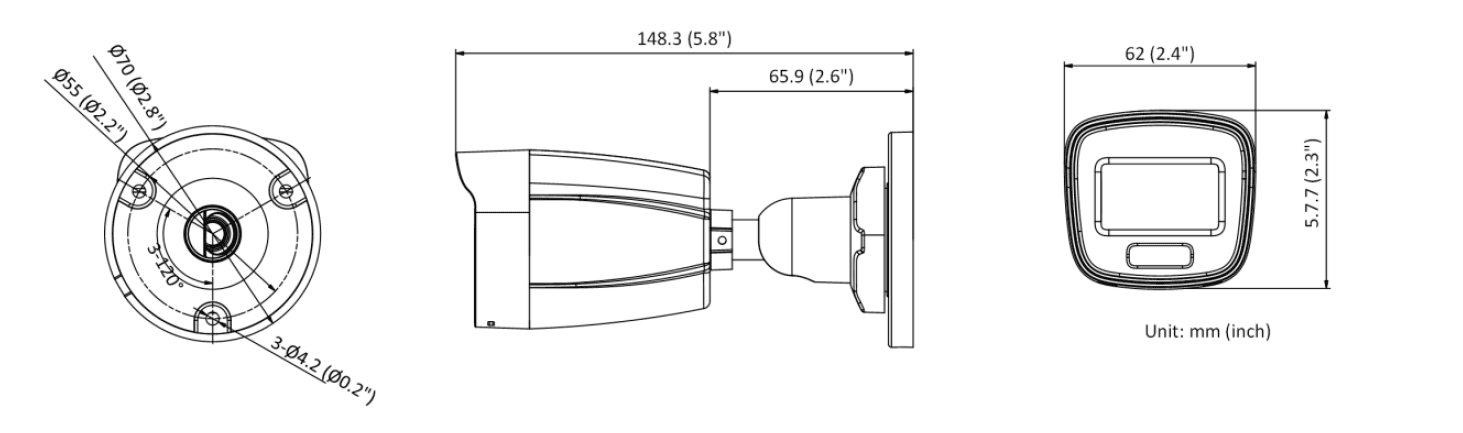

Dimension |
57.7 × 62 × 148.3 mm |
Weight |
Approx. 330 g (0.7 lb.) |
